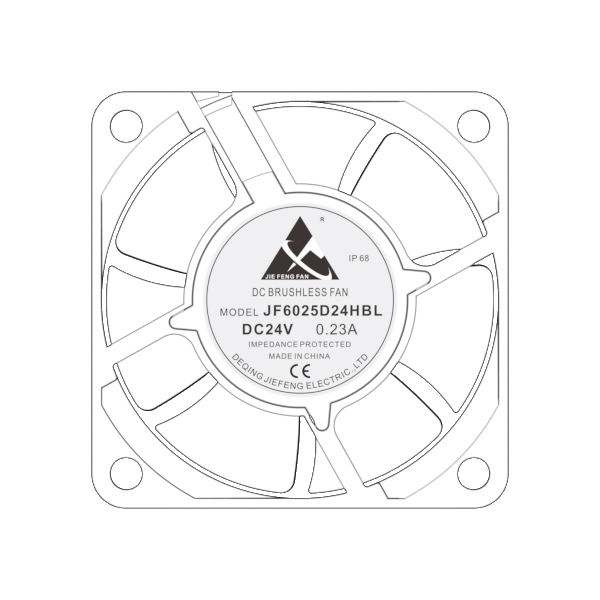

JF6025D24HBL-7
JF6025D24HBL-7 from Jiefeng Electric. DC Axial Waterproof Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF6025D12LBL 12 8.5～13.5 0.13 1.50 3000 0.44 15.60 2.92 0.12 26.0 JF6025D12MBL 12 8.5～13.5 0.23 2.80 4000 0.60 21.20 5.16 0.20 31.8 JF6025D12HBL 12 8.5～13.5 0.38 4.50 5000 0.80 28.40 9.14 0.36 40.5 JF6025D24LBL 24 18～26.5 0.06 1.50 3000 0.44 15.60 2.92 0.12 26.0 JF6025D24MBL 24 18～26.5 0.12 2.80 4000 0.60 21.20 5.16 0.20 31.8 JF6025D24HBL 24 18～26.5 0.19 4.50 6000 0.80 28.40 9.14 0.36 40.5 JF6025D48LBL 48 36～54 0.03 1.50 3000 0.44 15.60 2.92 0.12 26.0 JF6025D48MBL 48 36～54 0.06 2.80 4000 0.60 21.20 5.16 0.20 31.8 JF6025D48HBL 48 36～54 0.09 4.50 6000 0.80 28.40 9.14 0.36 40.5
Product specifications
- productType
- 防水轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 60.0*60.0*25.3 MM
- mountingSize
- 50.0*50.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ57.6 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 1.5/4.5 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 3000/6000 RPM
- airFlow
- 15.60/28.40 CFM
- airPressure
- 0.12/0.36 inch-H₂O
- noiseLevel
- 40.5 dBA
- protectionGrade
- IP68
- lifeSpan
- 40000 h
- weight
- 60.0 g
- wiringMethod
- 引线
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
Related products
JF4015D24HBL-7
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise P…
JF5020D24HBL-7
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise P…

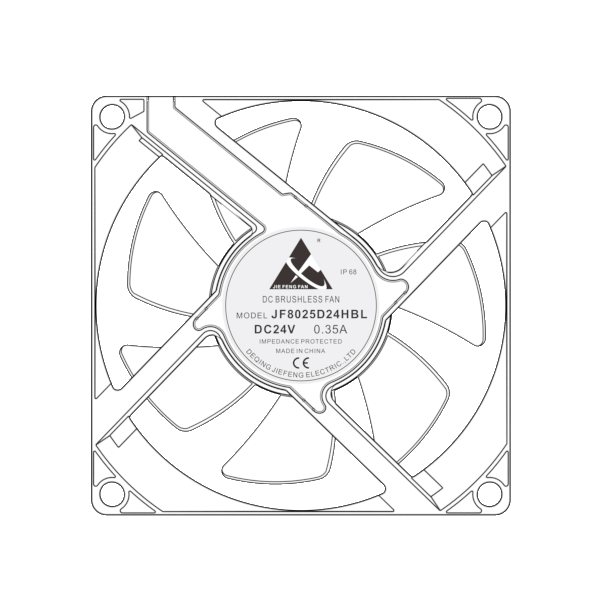

JF8025D24HBL-7
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise P…

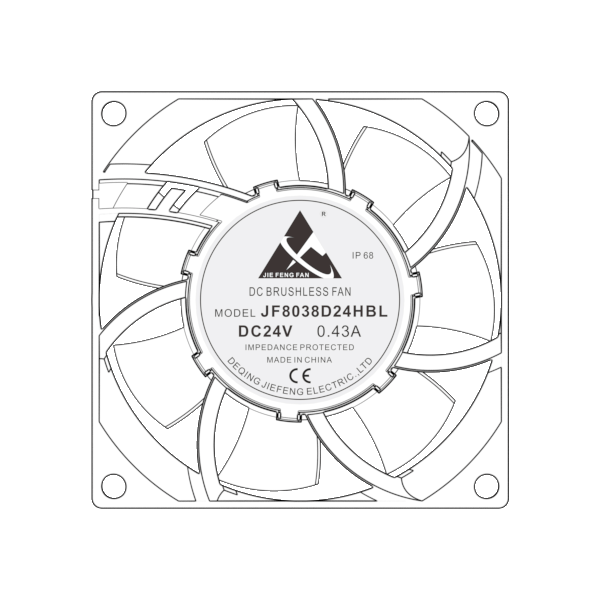

JF8038D24HBL-7
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise P…

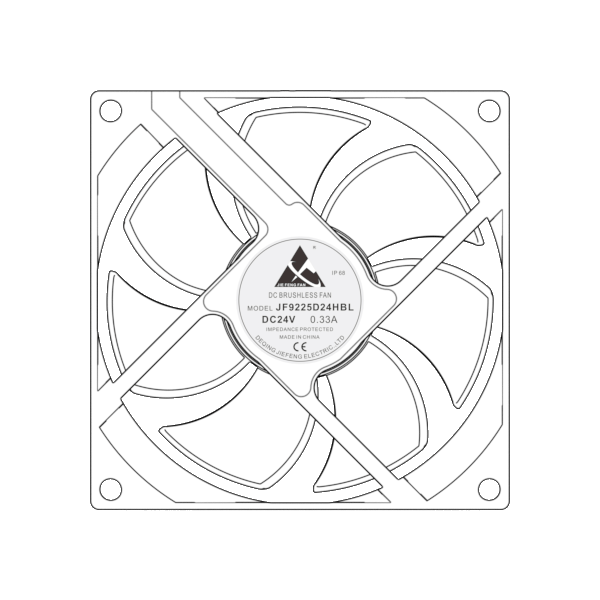

JF9225D24HBL-7
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise P…

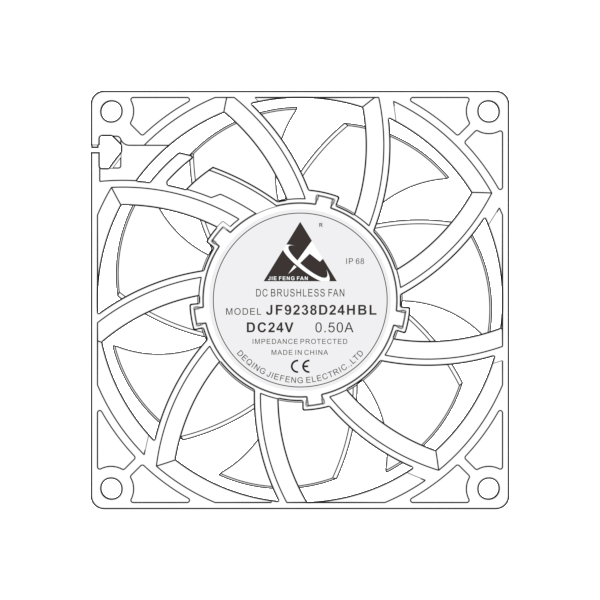

JF9238D24HBL-7
