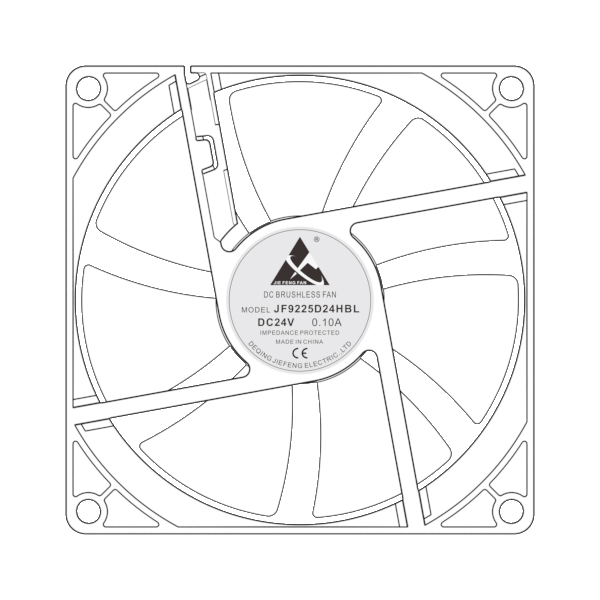

JF9225D24HBL-7
JF9225D24HBL-7 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF9225D12LBL 12 8.5～13.5 0.12 1.44 2000 0.90 31.90 2.01 0.08 27.5 JF9225D12LMBL 12 8.5～13.5 0.16 1.92 2500 1.08 38.30 2.92 0.12 33.7 JF9225D12MBL 12 8.5～13.5 0.20 2.40 3000 1.39 49.00 4.11 0.16 39.1 JF9225D12LHBL 12 8.5～13.5 0.24 2.88 3500 1.55 54.80 4.98 0.20 42.4 JF9225D12MHBL 12 8.5～13.5 0.32 3.84 4000 1.87 66.20 6.78 0.27 46.4 JF9225D12HBL 12 8.5～13.5 0.44 5.28 4500 2.09 73.90 8.33 0.33 50.1 JF9225D24LBL 24 18～26.5 0.06 1.44 2000 0.90 31.90 2.01 0.08 27.5 JF9225D24LMBL 24 18～26.5 0.08 1.92 2500 1.08 38.30 2.92 0.12 33.7 JF9225D24MBL 24 18～26.5 0.10 2.40 3000 1.39 49.00 4.11 0.16 39.1 JF9225D24LHBL 24 18～26.5 0.12 2.88 3500 1.55 54.80 4.98 0.20 42.4 JF9225D24MHBL 24 18～26.5 0.16 3.84 4000 1.87 66.20 6.78 0.27 46.4 JF9225D24HBL 24 18～26.5 0.22 5.28 4500 2.09 73.90 8.33 0.33 50.1 JF9225D48LBL 48 36～54 0.03 1.44 2000 0.90 31.90 2.01 0.08 27.5 JF9225D48LMBL 48 36～54 0.04 1.92 2500 1.08 38.30 2.92 0.12 33.7 JF9225D48MBL 48 36～54 0.05 2.40 3000 1.39 49.00 4.11 0.16 39.1 JF9225D48LHBL 48 36～54 0.06 2.88 3500 1.55 54.80 4.98 0.20 42.4 JF9225D48MHBL 48 36～54 0.08 3.84 4000 1.87 66.20 6.78 0.27 46.4 JF9225D48HBL 48 36～54 0.11 5.28 4500 2.09 73.90 8.33 0.33 50.1
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 92.0*92.0*24.8 MM
- mountingSize
- 82.0*82.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ88.9 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 1.44/5.28 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2000/4500 RPM
- airFlow
- 31.90/73.90 CFM
- airPressure
- 0.08/0.33 mmH₂O
- noiseLevel
- 50.1 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 70.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
