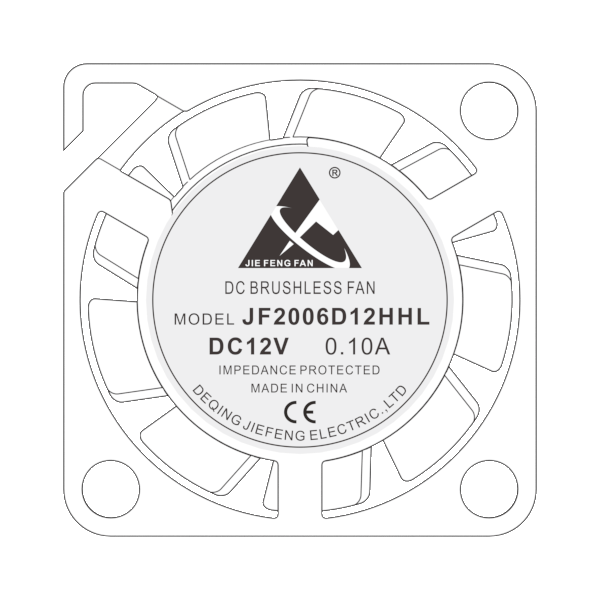

JF2006D12HHL-9
JF2006D12HHL-9 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF2006D05LHL 5 3~6 0.08 0.40 8000 0.02 0.79 1.95 0.08 21.5 JF2006D05MHL 5 3~6 0.12 0.60 10000 0.03 0.95 2.22 0.09 25.6 JF2006D05HHL 5 3~6 0.16 0.80 12000 0.03 1.12 1.95 0.11 31.2 JF2006D12LHL 12 8.5~13.5 0.04 0.48 8000 0.02 0.79 1.95 0.08 21.5 JF2006D12MHL 12 8.5~13.5 0.06 0.72 10000 0.03 0.95 2.22 0.09 25.6 JF2006D12HHL 12 8.5~13.5 0.10 1.20 12000 0.03 1.12 1.95 0.11 31.2
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 9
- overallSize
- 20.0*20.0*6.6 MM
- mountingSize
- 16.0*16.0 MM
- mountingHoleDiameter
- Φ2.2
- Ventilation Opening Size
- φ18.6 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油
- powerType
- 直流
- ratedVoltage
- 5V/12V
- ratedPower
- 0.4/1.2 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 8000/12000 RPM
- airFlow
- 0.79/1.12 CFM
- airPressure
- 0.08/0.11 mmH₂O
- noiseLevel
- 31.2 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000 h
- weight
- 2.9 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
Related products

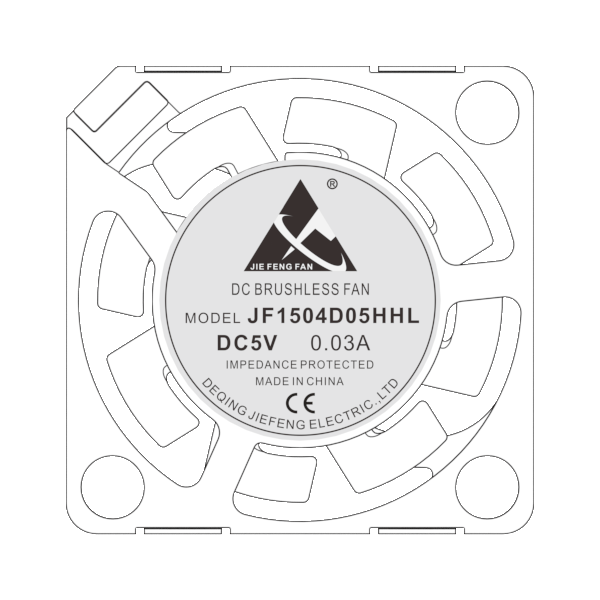

JF1504D05HHL-8
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise P…

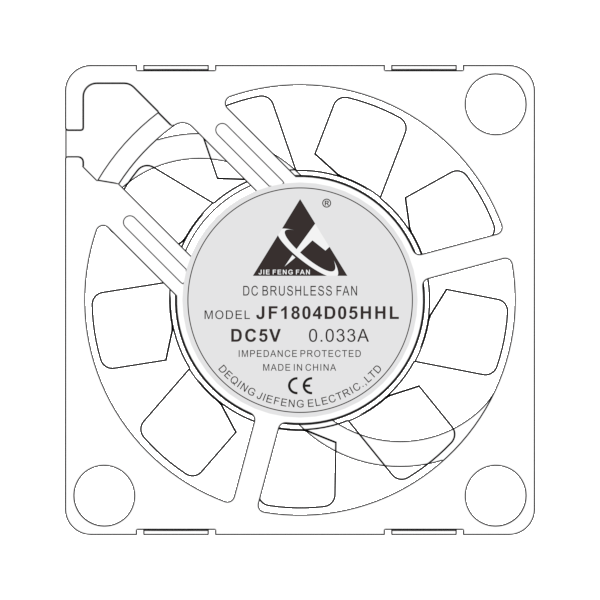

JF1804D05HHL-9
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise P…

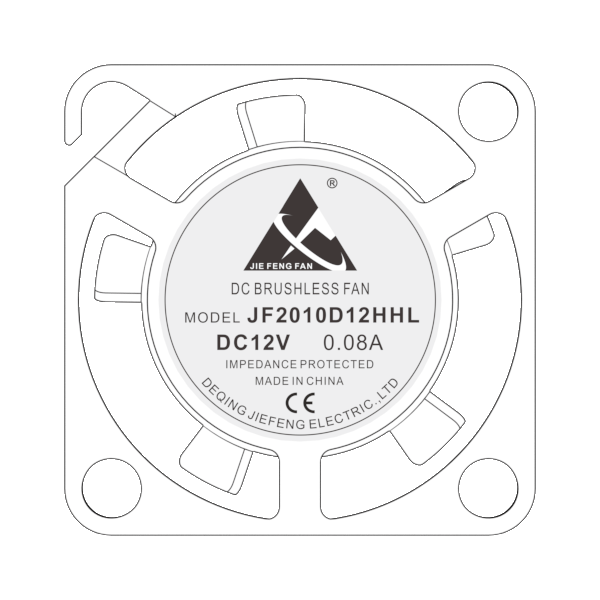

JF2010D12HHL-5
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise P…

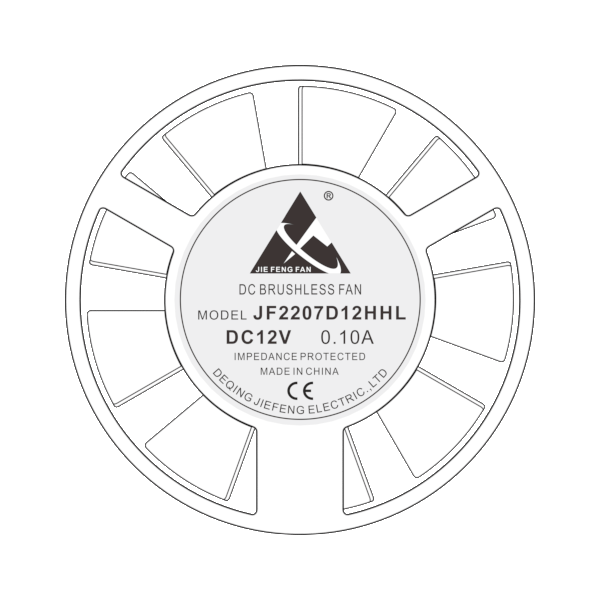

JF2207D12HHL-9（true round）
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise P…

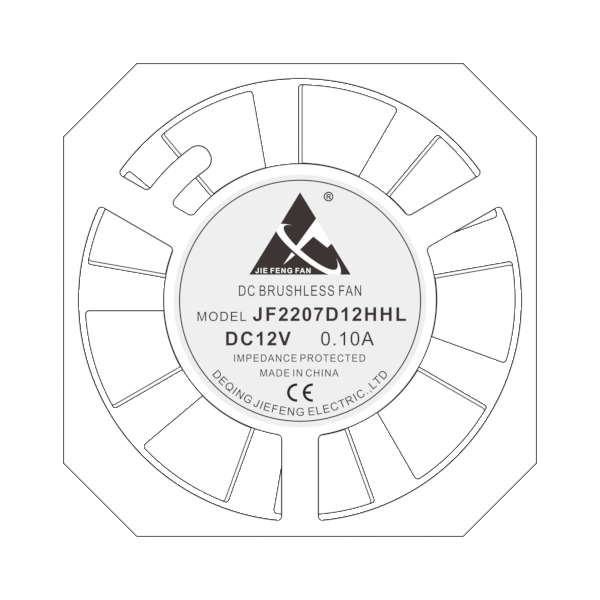

JF2207D12HHL-9
