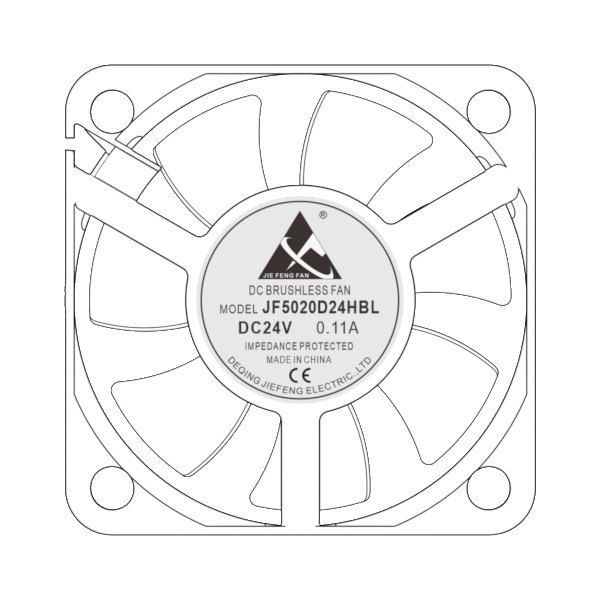

JF5020D24HBL-7
JF5020D24HBL-7 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF5020D12LBL 12 8.5～13.5 0.06 0.72 3000 0.25 8.85 1.52 0.06 22.3 JF5020D12LMBL 12 8.5～13.5 0.08 0.96 3500 0.29 10.30 1.98 0.08 24.2 JF5020D12MBL 12 8.5～13.5 0.10 1.20 4000 0.34 11.90 2.57 0.10 26.0 JF5020D12LHBL 12 8.5～13.5 0.14 1.68 4500 0.38 13.40 3.15 0.12 30.2 JF5020D12MHBL 12 8.5～13.5 0.18 2.16 5000 0.42 14.70 3.84 0.15 34.5 JF5020D12HBL 12 8.5～13.5 0.22 2.64 5500 0.47 16.60 4.70 0.19 36.8 JF5020D12HHBL 12 8.5～13.5 0.24 2.88 6000 0.52 18.40 5.82 0.23 40.6 JF5020D12VHBL 12 8.5～13.5 0.28 3.36 6500 0.57 20.10 6.71 0.26 41.4 JF5020D24LBL 24 18～26.5 0.03 0.72 3000 0.25 8.85 1.52 0.06 22.3 JF5020D24LMBL 24 18～26.5 0.04 0.96 3500 0.29 10.30 1.98 0.08 24.2 JF5020D24MBL 24 18～26.5 0.05 1.20 4000 0.34 11.90 2.57 0.10 26.0 JF5020D24LHBL 24 18～26.5 0.07 1.68 4500 0.38 13.40 3.15 0.12 30.2 JF5020D24MHBL 24 18～26.5 0.09 2.16 5000 0.42 14.70 3.84 0.15 34.5 JF5020D24HBL 24 18～26.5 0.11 2.64 5500 0.47 16.60 4.70 0.19 36.8 JF5020D24HHBL 24 18～26.5 0.12 2.88 6000 0.52 18.40 5.82 0.23 40.6 JF5020D24VHBL 24 18～26.5 0.14 3.36 6500 0.57 20.10 6.71 0.26 41.4
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 50.2*50.2*19.8 MM
- mountingSize
- 40.0*40.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ48.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V
- ratedPower
- 0.72/3.36 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 3000/6500 RPM
- airFlow
- 8.85/20.1 CFM
- airPressure
- 0.06/0.26 mmH₂O
- noiseLevel
- 41.4 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 31.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
