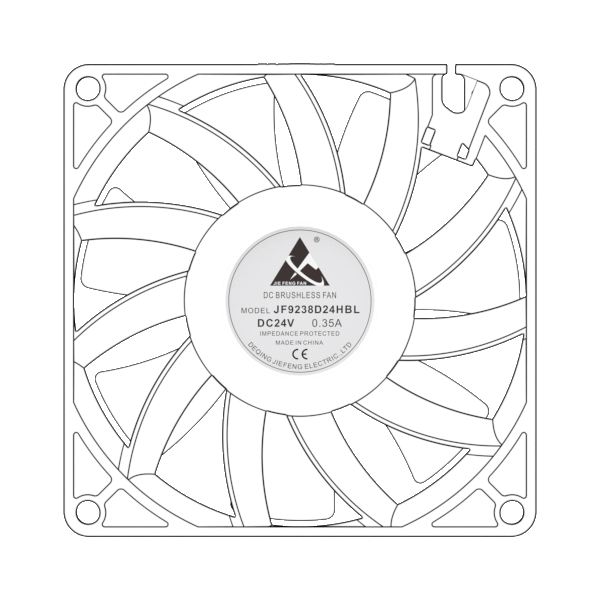

JF9238D24HBL-7
JF9238D24HBL-7 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF9238D12LBL 12 8.5～13.5 0.50 6.00 3500 2.01 70.86 8.26 0.33 48.0 JF9238D12MBL 12 8.5～13.5 0.90 10.80 4500 2.66 94.09 14.25 0.56 55.1 JF9238D12HBL 12 8.5～13.5 1.20 14.40 5500 3.17 112.02 20.24 0.80 61.5 JF9238D12HHBL 12 8.5～13.5 1.60 19.20 6500 3.77 133.04 24.87 0.98 65.6 JF9238D12VHBL 12 8.5～13.5 2.10 25.20 7000 4.08 144.26 30.89 1.22 66.2 JF9238D24LBL 24 18～26.5 0.25 6.00 3500 2.01 70.86 8.26 0.33 48.0 JF9238D24MBL 24 18～26.5 0.45 10.80 4500 2.66 94.09 14.25 0.56 55.1 JF9238D24HBL 24 18～26.5 0.60 14.40 5500 3.17 112.02 20.24 0.80 61.5 JF9238D24HHBL 24 18～26.5 0.80 19.20 6500 3.77 133.04 24.87 0.98 65.6 JF9238D24VHBL 24 18～26.5 1.05 25.20 7000 4.08 144.26 30.89 1.22 66.2
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 增压塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 92.0*92.0*38.1 MM
- mountingSize
- 82.0*82.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ89.7 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 6.0/25.2 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 3500/7000 RPM
- airFlow
- 70.86/144.26 CFM
- airPressure
- 0.33/1.22 mmH₂O
- noiseLevel
- 66.2 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 165.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
