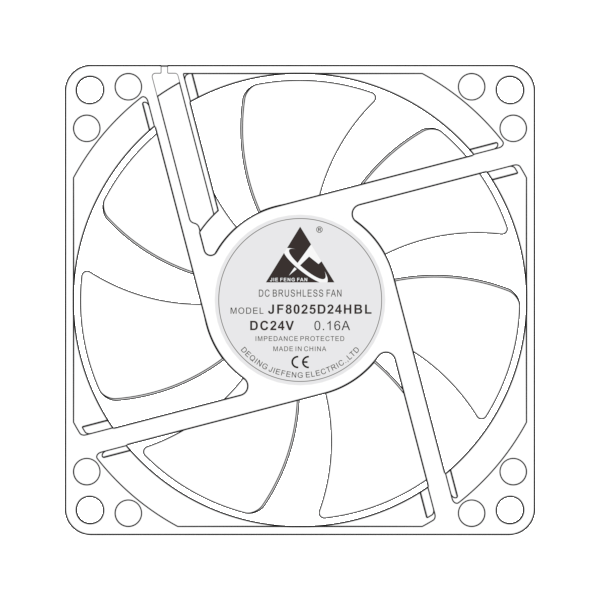

JF8025D24HBL-7
JF8025D24HBL-7 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF8025D12LBL 12 8.5～13.5 0.08 0.96 2150 0.70 24.70 1.70 0.07 22.0 JF8025D12LMBL 12 8.5～13.5 0.09 1.08 2400 0.80 28.20 2.21 0.09 25.0 JF8025D12MBL 12 8.5～13.5 0.11 1.32 2700 0.90 31.70 2.69 0.11 28.0 JF8025D12LHBL 12 8.5～13.5 0.13 1.56 3000 1.00 35.30 3.30 0.13 31.0 JF8025D12MHBL 12 8.5～13.5 0.17 2.04 3250 1.10 38.80 3.78 0.15 34.0 JF8025D12HBL 12 8.5～13.5 0.22 2.64 3400 1.14 40.20 4.09 0.16 35.0 JF8025D24LBL 24 18～26.5 0.05 1.08 2150 0.70 24.70 1.70 0.07 22.0 JF8025D24LMBL 24 18～26.5 0.05 1.20 2400 0.80 28.20 2.21 0.09 25.0 JF8025D24MBL 24 18～26.5 0.06 1.44 2700 0.90 31.70 2.69 0.11 28.0 JF8025D24LHBL 24 18～26.5 0.07 1.68 3000 1.00 35.30 3.30 0.13 31.0 JF8025D24MHBL 24 18～26.5 0.10 2.40 3250 1.10 38.80 3.78 0.15 34.0 JF8025D24HBL 24 18～26.5 0.12 2.88 3400 1.14 40.20 4.09 0.16 35.0 JF8025D48LBL 48 36～54 0.02 1.08 2150 0.70 24.70 1.70 0.07 22.0 JF8025D48LMBL 48 36～54 0.03 1.20 2400 0.80 28.20 2.21 0.09 25.0 JF8025D48MBL 48 36～54 0.03 1.44 2700 0.90 31.70 2.69 0.11 28.0 JF8025D48LHBL 48 36～54 0.04 1.68 3000 1.00 35.30 3.30 0.13 31.0 JF8025D48MHBL 48 36～54 0.05 2.40 3250 1.10 38.80 3.78 0.15 34.0 JF8025D48HBL 48 36～54 0.06 2.88 3400 1.14 40.20 4.09 0.16 35.0
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 80.1*80.1*24.7 MM
- mountingSize
- 71.0*71.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ77.3 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 0.96/2.88 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2150/3400 RPM
- airFlow
- 24.7/40.2 CFM
- airPressure
- 0.07/0.16 mmH₂O
- noiseLevel
- 35.0 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 62.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
