JF4015D24HBL-7
JF4015D24HBL-7 from Jiefeng Electric. DC Axial Waterproof Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF4015D12LBL 12 8.5～13.5 0.080 1.00 5000 0.184 6.50 3.66 0.144 18.50 JF4015D12MBL 12 8.5～13.5 0.100 1.20 6000 0.230 8.12 5.13 0.202 24.50 JF4015D12HBL 12 8.5～13.5 0.116 1.40 7000 0.268 9.46 6.91 0.272 28.50 JF4015D24LBL 24 18～26.5 0.080 1.00 5000 0.184 6.50 3.66 0.144 18.50 JF4015D24MBL 24 18～26.5 0.100 1.20 6000 0.230 8.12 5.13 0.202 24.50 JF4015D24HBL 24 18～26.5 0.116 1.40 7000 0.268 9.46 6.91 0.272 28.50
Product specifications
- productType
- 防水轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 40.0*40.0*15.9 MM
- mountingSize
- 31.9*31.9 MM
- mountingHoleDiameter
- Φ3.3
- Ventilation Opening Size
- φ38.1 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V
- ratedPower
- 1.0/1.40 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 5000/7000 RPM
- airFlow
- 6.50/9.46 CFM
- airPressure
- 0.144/0.272 inch-H₂O
- noiseLevel
- 28.5 dBA
- protectionGrade
- IP68
- lifeSpan
- 40000 h
- weight
- 32.0 g
- wiringMethod
- 引线
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
Related products

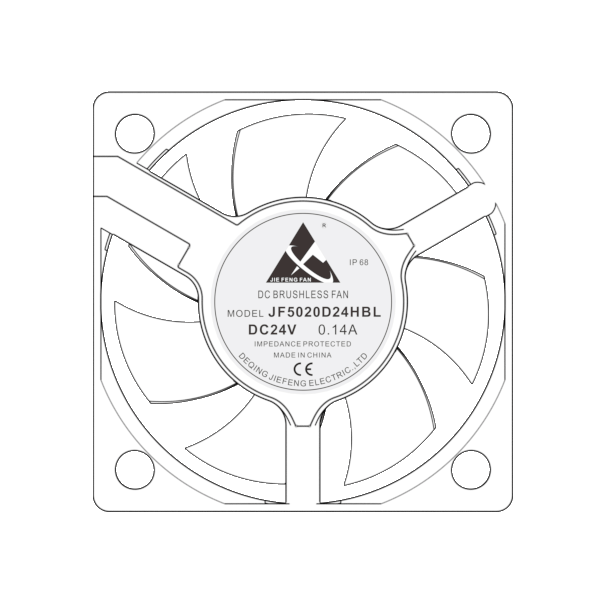

JF5020D24HBL-7
