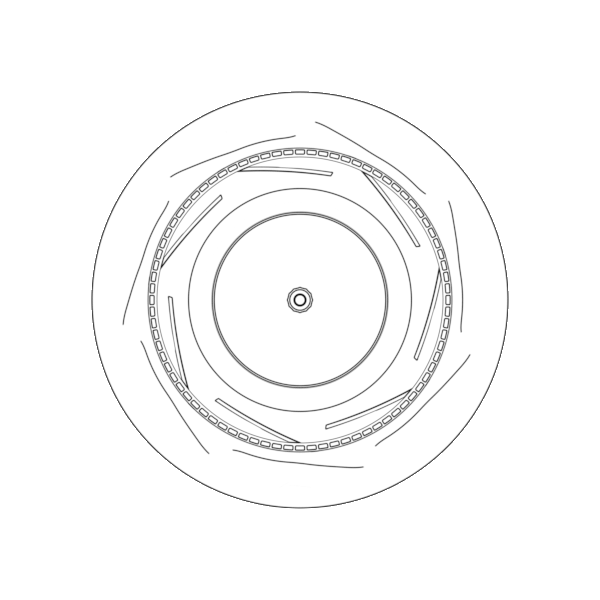

JF225D2HBL
JF225D2HBL from Jiefeng Electric. DC Centrifugual Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Current Power Speed Maximum Airflow Maximum Air Pressure Noise PART NO. VDC VDC A W R.P.M M ³ /min CFM InH2O pa dBA JF225D24LBL 24 18~26.5 4.20 100.8 1500 10.66 376.70 1.78 445.50 37.9 JF225D24MBL 24 18~26.5 5.50 132.0 2000 14.22 502.30 2.38 594.00 50.5 JF225D24HBL 24 18~26.5 7.00 168.0 2800 19.90 703.20 3.33 831.60 70.7 JF225D48LBL 48 36~54 2.00 96.0 1500 10.66 376.70 1.78 445.50 37.9 JF225D48MBL 48 36~54 2.80 134.4 2000 14.22 502.30 2.38 594.00 50.5 JF225D48HBL 48 36~54 3.80 182.4 2700 19.21 678.70 3.21 801.90 68.2
Product specifications
- productType
- 离心风机
- brand
- JIEFENGFAN
- bladeMaterial
- 塑料 PBT+28%GF
- bladeDiameter
- φ224.0 MM
- overallSize
- φ224.0*99.0 MM
- mountingSize
- φ58.0 MM
- mountingHoleDiameter
- M4.0|深度7.0
- Ventilation Opening Size
- φ153.5 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 24V/48V
- ratedPower
- 100.8/182.4 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 1500/2700 RPM
- airFlow
- 376.7/678.7 CFM
- airPressure
- 1.78/3.21 inch-H₂O
- noiseLevel
- 68.2 dBA
- protectionGrade
- IP43
- lifeSpan
- 40000 h
- weight
- 1500.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
