JF133D2HBL
JF133D2HBL from Jiefeng Electric. DC Centrifugual Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed Maximum Airflow Maximum Air Pressure Noise PART NO. VDC VDC AMP Watt RPM M ³ /min CFM InH2O pa dBA JF133D24LBL 24 18~26.5 0.50 7.2 2000 1.62 105.94 0.38 95.21 49.0 JF133D24MBL 24 18~26.5 0.75 18.0 3000 1.93 158.91 0.86 214.23 58.0 JF133D24HBL 24 18~26.5 1.50 36.0 4000 1.93 211.88 1.56 380.80 64.0 JF133D24HHBL 24 18~26.5 2.55 61.5 5000 1.97 264.85 2.39 595.26 69.0 JF133D48LBL 48 36~54 0.15 7.2 2000 1.62 105.94 0.38 95.21 49.0 JF133D48MBL 48 36~54 0.40 18.0 3000 1.93 158.91 0.86 214.23 58.0 JF133D48HBL 48 36~54 0.80 36.0 4000 1.93 211.88 1.56 380.80 64.0 JF133D48HHBL 48 36~54 1.25 61.5 5000 1.97 264.85 2.39 595.26 69.0
Product specifications
- productType
- 离心风机
- brand
- JIEFENGFAN
- bladeMaterial
- 塑料 PBT+28%GF
- bladeDiameter
- φ133.0 MM
- overallSize
- φ133.0*91.0 MM
- mountingSize
- φ58.0 MM
- mountingHoleDiameter
- M4.0|深度6.0
- Ventilation Opening Size
- φ93.5 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 24V/48V
- ratedPower
- 7.2/61.5 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2000/5000 RPM
- airFlow
- 105.94/264.85 CFM
- airPressure
- 0.38/2.39 inch-H₂O
- noiseLevel
- 69 dBA
- protectionGrade
- IP43
- lifeSpan
- 40000 h
- weight
- 680.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
Related products
JF100D2HBL
Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed …
JF120D2HBL
Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed …
JF130D2HBL
Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed …
JF150D2HBL
Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed …
JF160D2HBL
Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed …

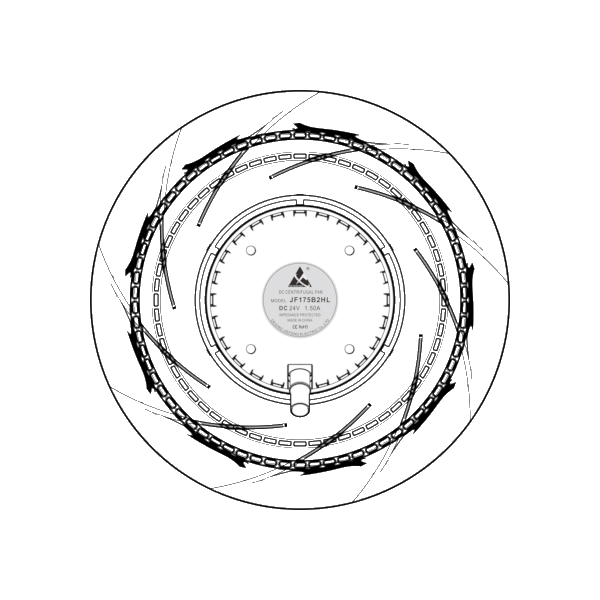

JF175D2HBL
