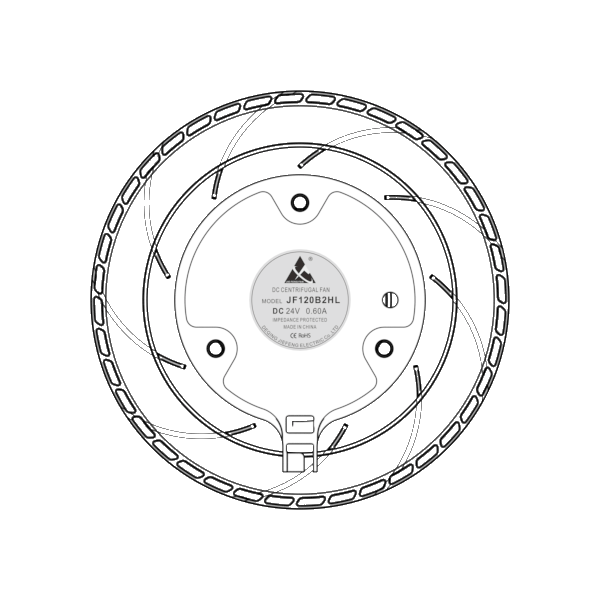

JF120D2HBL
JF120D2HBL from Jiefeng Electric. DC Centrifugual Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed Maximum Airflow Maximum Air Pressure Noise PART NO. VDC VDC AMP Watt RPM M ³ /min CFM InH2O pa dBA JF120D12LBL 12 7.5~13.5 0.60 7.2 2500 1.62 57.29 0.55 136.70 45 JF120D12MBL 12 7.5~13.5 0.80 9.6 3000 1.79 63.14 0.70 173.80 49.6 JF120D12HBL 12 7.5~13.5 1.20 14.4 3500 1.97 69.69 0.83 207.42 53.5 JF120D24LBL 24 18~26.5 0.30 7.2 2500 1.62 57.29 0.55 136.70 45 JF120D24MBL 24 18~26.5 0.40 9.6 3000 1.79 63.14 0.70 173.80 49.6 JF120D24HBL 24 18~26.5 0.60 14.4 3500 1.97 69.69 0.83 207.42 53.5 JF120D48LBL 48 36~54 0.15 7.2 2500 1.62 57.29 0.55 136.70 45 JF120D48MBL 48 36~54 0.20 9.6 3000 1.79 63.14 0.70 173.80 49.6 JF120D48HBL 48 36~54 0.32 14.4 3500 1.97 69.69 0.83 207.42 53.5
Product specifications
- productType
- 离心风机
- brand
- JIEFENGFAN
- bladeMaterial
- 塑料 PBT+28%GF
- bladeDiameter
- φ120.0 MM
- overallSize
- φ120.2*26.0 MM
- mountingSize
- φ56.2 MM
- mountingHoleDiameter
- M4.0|深度6.0
- Ventilation Opening Size
- φ87.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 7.2/14.4 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2500/3500 RPM
- airFlow
- 57.29/69.69 CFM
- airPressure
- 0.55/0.83 inch-H₂O
- noiseLevel
- 53.5 dBA
- protectionGrade
- IP43
- lifeSpan
- 40000 h
- weight
- 155.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
Related products

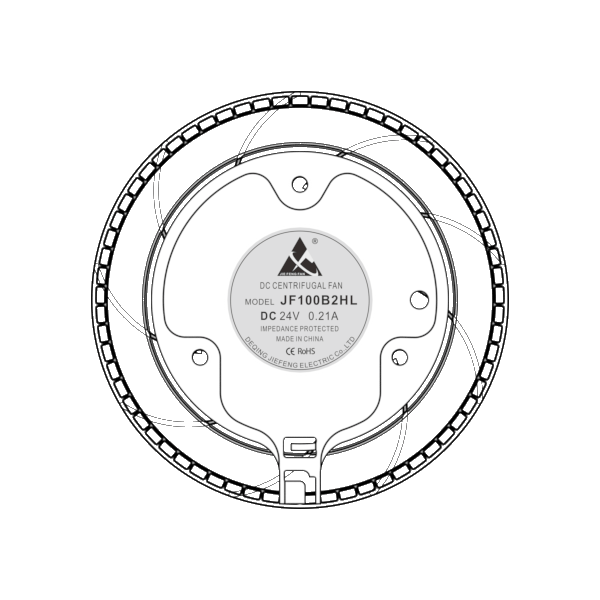

JF100D2HBL
Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed …

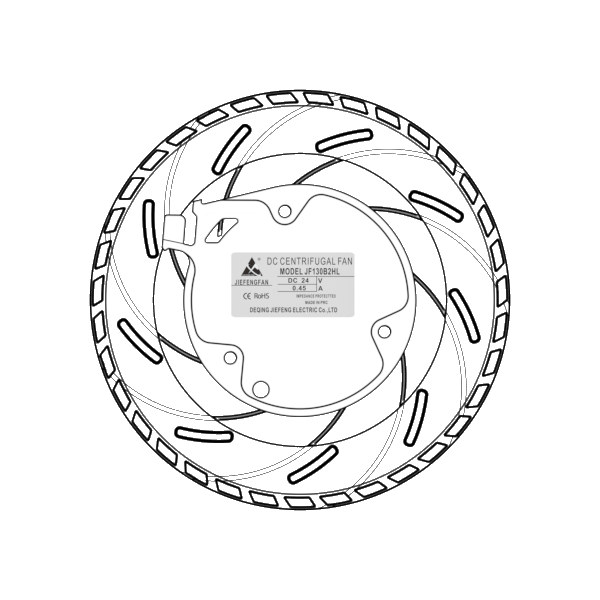

JF130D2HBL
Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed …

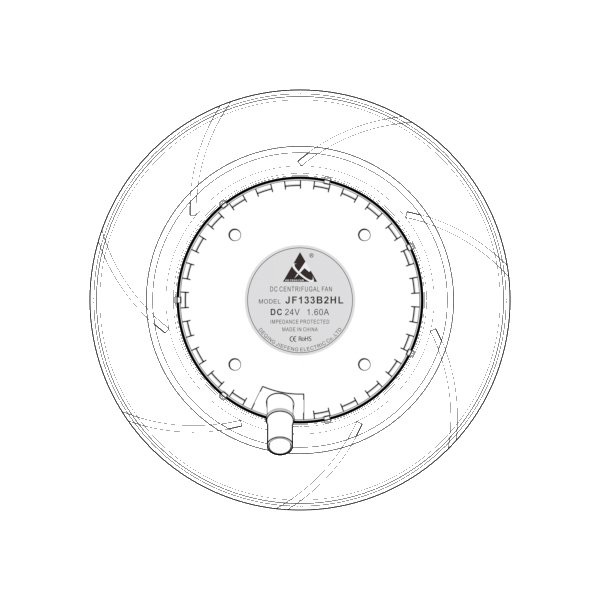

JF133D2HBL
Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed …

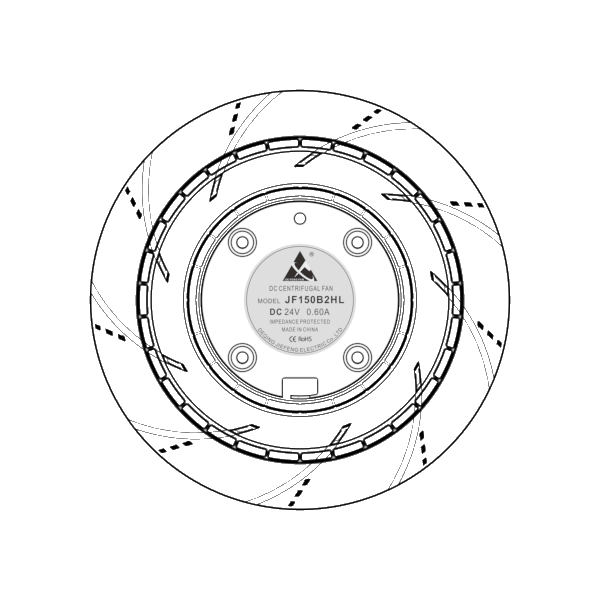

JF150D2HBL
Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed …

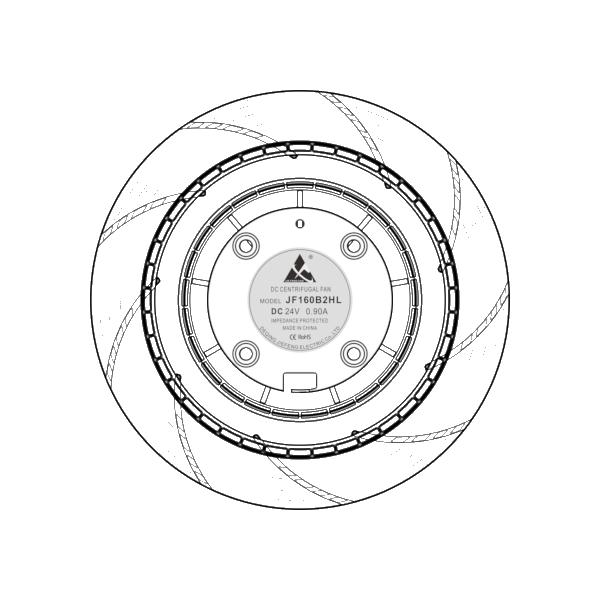

JF160D2HBL
