JF220D2HBL
JF220D2HBL from Jiefeng Electric. DC Centrifugual Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview

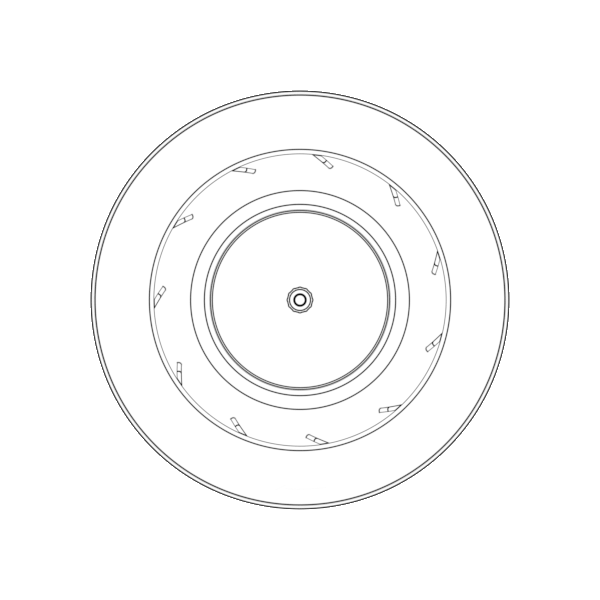

Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Current Power Speed Maximum Airflow Maximum Air Pressure Noise PART NO. VDC VDC A W R.P.M M ³ /min CFM InH2O pa dBA JF220D24LBL 24 18~26.5 1.88 45.0 2300 12.74 450.00 1.38 343.62 65.0 JF220D24MBL 24 18~26.5 3.54 85.0 2600 14.43 510.00 1.64 408.36 71.0 JF220D24HBL 24 18~26.5 4.17 100.0 3100 15.99 565.00 2.71 674.79 74.0 JF220D48LBL 48 36~54 0.94 45.0 2300 12.74 450.00 1.38 343.62 65.0 JF220D48MBL 48 36~54 1.77 85.0 2600 14.43 510.00 1.64 408.36 71.0 JF220D48HBL 48 36~54 2.08 100.0 3100 15.99 565.00 2.71 674.79 74.0
Product specifications
- productType
- 离心风机
- brand
- JIEFENGFAN
- bladeMaterial
- 塑料 PBT+28%GF
- bladeDiameter
- φ219.5 MM
- overallSize
- φ219.5*73.0 MM
- mountingSize
- φ58.0 MM
- mountingHoleDiameter
- M4.0|深度7.0
- Ventilation Opening Size
- φ153.5 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 24V/48V
- ratedPower
- 45/100 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2300/3100 RPM
- airFlow
- 450/565 CFM
- airPressure
- 1.38/2.71 inch-H₂O
- noiseLevel
- 74 dBA
- protectionGrade
- IP43
- lifeSpan
- 40000 h
- weight
- 1400.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
