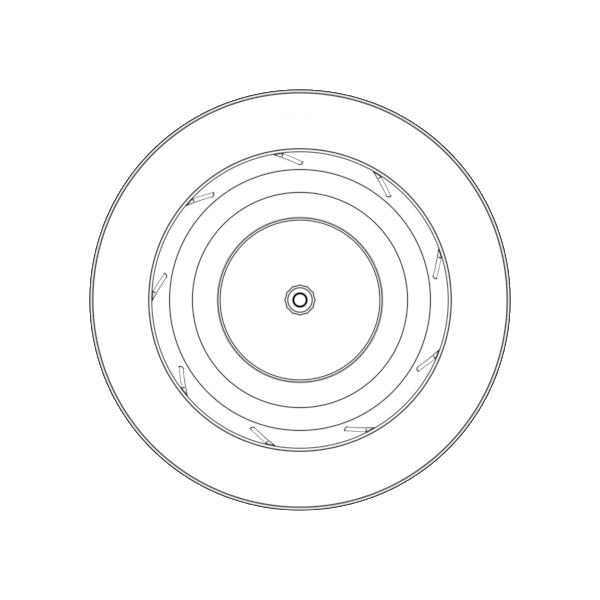

JF190D2HBL
JF190D2HBL from Jiefeng Electric. DC Centrifugual Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Current Power Speed Maximum Airflow Maximum Air Pressure Noise PART NO. VDC VDC A W R.P.M M ³ /min CFM InH2O pa dBA JF190D24LBL 24 18~26.5 1.00 24.0 1900 5.28 186.50 1.63 407.20 42.8 JF190D24MBL 24 18~26.5 2.10 50.4 2600 7.22 255.20 2.23 557.20 58.6 JF190D24HBL 24 18~26.5 4.70 112.8 3500 9.72 343.60 3.00 750.00 78.9 JF190D48LBL 48 36~54 0.40 19.2 1800 5.00 176.70 1.54 385.70 40.6 JF190D48MBL 48 36~54 1.00 48.0 2600 7.22 255.20 2.23 557.20 58.6 JF190D48HBL 48 36~54 2.50 120.0 3500 9.72 343.60 3.04 760.20 78.9
Product specifications
- productType
- 离心风机
- brand
- JIEFENGFAN
- bladeMaterial
- 塑料 PBT+28%GF
- bladeDiameter
- φ190.0 MM
- overallSize
- φ190.0*69.0 MM
- mountingSize
- φ58.0 MM
- mountingHoleDiameter
- M4.0|深度7.0
- Ventilation Opening Size
- φ133.5 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 24V/48V
- ratedPower
- 24/120 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 1900/3500 RPM
- airFlow
- 186.5/343.6 CFM
- airPressure
- 1.63/3.04 inch-H₂O
- noiseLevel
- 78.9 dBA
- protectionGrade
- IP43
- lifeSpan
- 40000 h
- weight
- 1300.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
