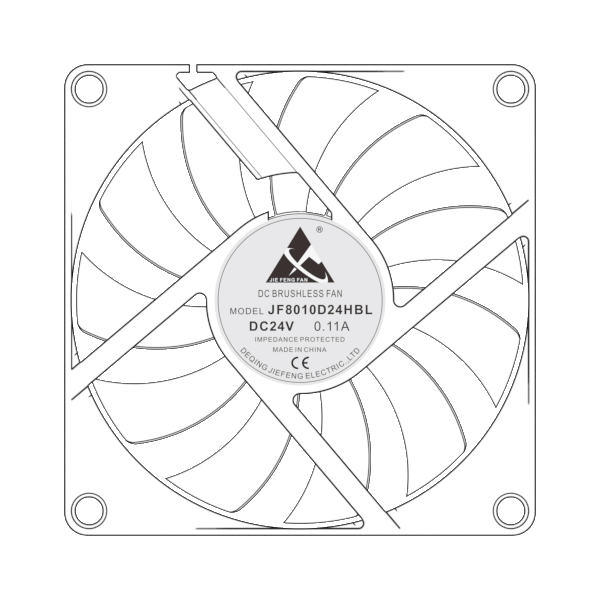

JF8010D24HBL-11
JF8010D24HBL-11 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and…
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF8010D05LBL 5 3.5～5.5 0.14 0.72 2000 0.39 13.90 0.89 0.04 22.9 JF8010D12LBL 12 8.5～13.5 0.06 0.72 2000 0.39 13.90 0.89 0.04 22.9 JF8010D12MBL 12 8.5～13.5 0.10 1.20 2500 0.50 17.80 1.19 0.05 26.5 JF8010D12HBL 12 8.5～13.5 0.16 1.92 3000 0.62 21.80 1.70 0.07 30.7 JF8010D12HHBL 12 8.5～13.5 0.22 2.64 3500 0.72 25.60 2.44 0.10 34.9 JF8010D24LBL 24 18～26.5 0.03 0.72 2000 0.39 13.90 0.89 0.04 22.9 JF8010D24MBL 24 18～26.5 0.05 1.20 2500 0.50 17.80 1.19 0.05 26.5 JF8010D24HBL 24 18～26.5 0.08 1.92 3000 0.62 21.80 1.70 0.07 30.7 JF8010D24HHBL 24 18～26.5 0.11 2.64 3500 0.72 25.60 2.44 0.10 34.9
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 11
- overallSize
- 80.0*80.0*10.7 MM
- mountingSize
- 71.0*71.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ77.6 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 5V/12V/24V
- ratedPower
- 0.72/2.64 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2000/3500 RPM
- airFlow
- 13.9/25.6 CFM
- airPressure
- 0.04/0.10 mmH₂O
- noiseLevel
- 34.9 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 39.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
