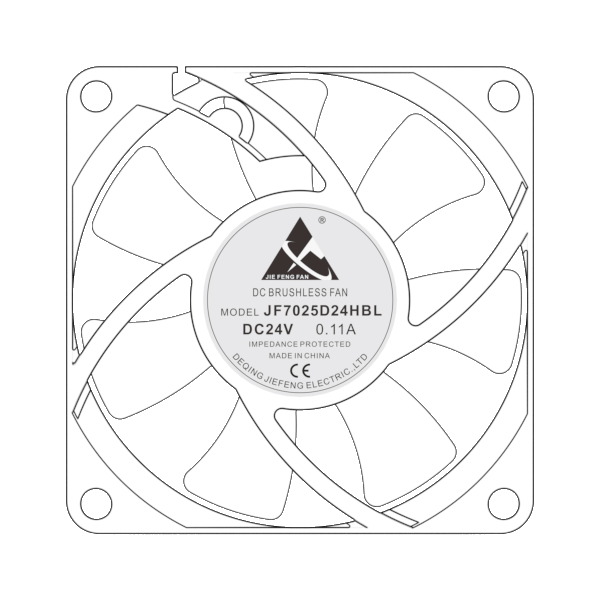

JF7025D24HBL-7
JF7025D24HBL-7 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF7025D12LBL 12 8.5～13.5 0.14 1.68 3000 0.76 26.80 2.92 0.12 32.5 JF7025D12LMBL 12 8.5～13.5 0.18 2.16 3500 0.88 31.20 3.84 0.15 36.0 JF7025D12MBL 12 8.5～13.5 0.22 2.64 4000 1.02 36.00 5.08 0.20 40.9 JF7025D12LHBL 12 8.5～13.5 0.26 3.12 4500 1.15 40.50 6.30 0.25 43.0 JF7025D12MHBL 12 8.5～13.5 0.32 3.84 5000 1.27 44.90 7.80 0.31 47.3 JF7025D24LBL 24 18～26.5 0.07 1.68 3000 0.76 26.80 2.92 0.12 32.5 JF7025D24LMBL 24 18～26.5 0.09 2.16 3500 0.88 31.20 3.84 0.15 36.0 JF7025D24MBL 24 18～26.5 0.11 2.64 4000 1.02 36.00 5.08 0.20 40.9 JF7025D24LHBL 24 18～26.5 0.13 3.12 4500 1.15 40.50 6.30 0.25 43.0 JF7025D24MHBL 24 18～26.5 0.16 3.84 5000 1.27 44.90 7.80 0.31 47.3 JF7025D48LBL 48 36～54 0.04 1.68 3000 0.76 26.80 2.92 0.12 32.5 JF7025D48LMBL 48 36～54 0.05 2.16 3500 0.88 31.20 3.84 0.15 36.0 JF7025D48MBL 48 36～54 0.06 2.64 4000 1.02 36.00 5.08 0.20 40.9 JF7025D48LHBL 48 36～54 0.07 3.12 4500 1.15 40.50 6.30 0.25 43.0 JF7025D48MHBL 48 36～54 0.08 3.84 5000 1.27 44.90 7.80 0.31 47.3
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 70.2*70.2*25.2 MM
- mountingSize
- 61.0*61.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ68.3 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 1.68/3.84 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 3000/5000 RPM
- airFlow
- 26.8/44.9 CFM
- airPressure
- 0.12/0.31 mmH₂O
- noiseLevel
- 47.3 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 68.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
