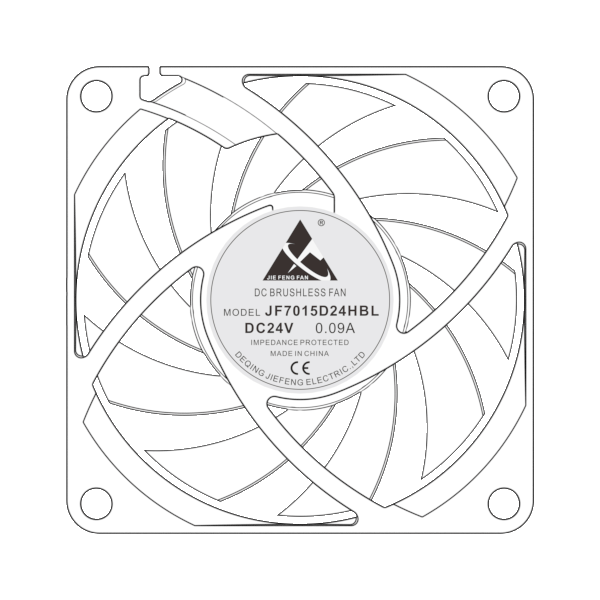

JF7015D24HBL-9
JF7015D24HBL-9 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF7015D05LBL 5 3.5～5.5 0.10 0.48 2000 0.39 13.90 0.89 0.04 22.9 JF7015D12LBL 12 8.5～13.5 0.04 0.48 2500 0.42 14.80 1.37 0.05 22.9 JF7015D12LMBL 12 8.5～13.5 0.06 0.72 3000 0.56 19.70 2.11 0.08 27.2 JF7015D12MBL 12 8.5～13.5 0.08 0.96 3500 0.65 23.00 2.92 0.12 33.3 JF7015D12LHBL 12 8.5～13.5 0.12 1.44 4000 0.74 26.00 3.56 0.14 36.2 JF7015D12MHBL 12 8.5～13.5 0.18 2.16 4500 0.84 29.80 4.62 0.18 38.9 JF7015D24LBL 24 18～26.5 0.02 0.48 2500 0.42 14.80 1.37 0.05 22.9 JF7015D24LMBL 24 18～26.5 0.03 0.72 3000 0.56 19.70 2.11 0.08 27.2 JF7015D24MBL 24 18～26.5 0.04 0.96 3500 0.65 23.00 2.92 0.12 33.3 JF7015D24LHBL 24 18～26.5 0.06 1.44 4000 0.74 26.00 3.56 0.14 36.2 JF7015D24MHBL 24 18～26.5 0.09 2.16 4500 0.84 29.80 4.62 0.18 38.9
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 9
- overallSize
- 69.9*69.9*15.0 MM
- mountingSize
- 61.0*61.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ67.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 5V/12V/24V
- ratedPower
- 0.48/2.16 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2000/4500 RPM
- airFlow
- 13.9/29.8 CFM
- airPressure
- 0.04/0.18 mmH₂O
- noiseLevel
- 38.9 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 44.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
