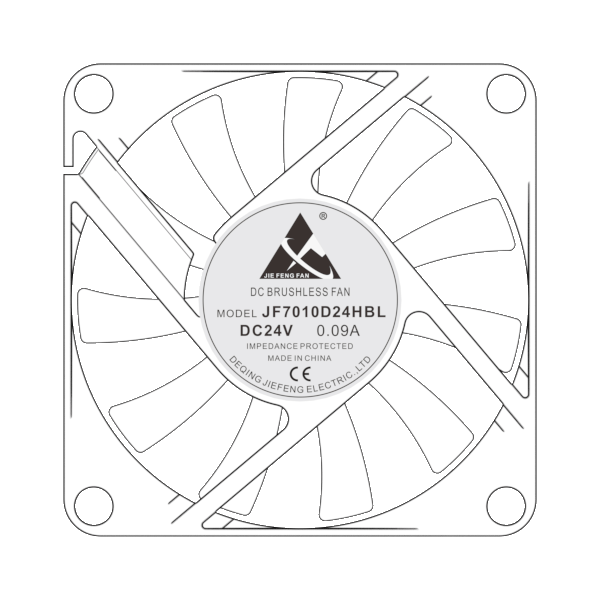

JF7010D24HBL-11
JF7010D24HBL-11 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and…
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF7010D05LBL 5 3.5～5.5 0.15 0.75 3000 0.61 21.50 1.52 0.06 29.4 JF7010D05MBL 5 3.5～5.5 0.35 1.75 4000 0.81 28.70 2.79 0.11 35.7 JF7010D05HBL 5 3.5～5.5 0.40 2.00 4500 0.91 32.30 3.56 0.14 38.2 JF7010D05HHBL 5 3.5～5.5 0.45 2.25 5000 1.02 35.90 4.32 0.17 40.5 JF7010D12LBL 12 8.5～13.5 0.06 0.75 3000 0.61 21.50 1.52 0.06 29.4 JF7010D12MBL 12 8.5～13.5 0.15 1.75 4000 0.81 28.70 2.79 0.11 35.7 JF7010D12HBL 12 8.5～13.5 0.17 2.00 4500 0.91 32.30 3.56 0.14 38.2 JF7010D12HHBL 12 8.5～13.5 0.19 2.25 5000 1.02 35.90 4.32 0.17 40.5
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 11
- overallSize
- 69.9*69.9*10.9 MM
- mountingSize
- 61.0*61.0 MM
- mountingHoleDiameter
- Φ5.3
- Ventilation Opening Size
- φ67.6 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 5V/12V
- ratedPower
- 0.75/2.25 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 3000/5000 RPM
- airFlow
- 21.5/35.9 CFM
- airPressure
- 0.06/0.17 mmH₂O
- noiseLevel
- 40.5 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 35.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
