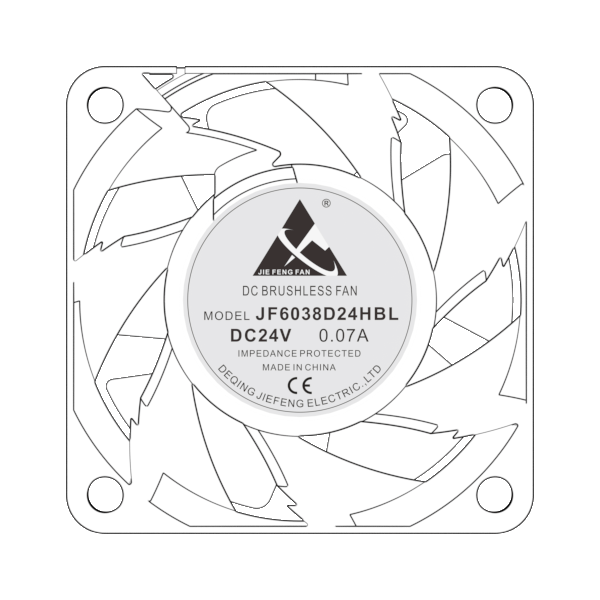

JF6038D24HBL-5
JF6038D24HBL-5 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF6038D12SHBL 12 8.5～13.5 2.70 32.40 21700 1.88 66.40 177.80 7.00 68.0 JF6038D24SHBL 24 18～26.5 1.35 32.40 21700 1.88 66.40 177.80 7.00 68.0 JF6038D48SHBL 48 36～54 0.68 32.40 21700 1.88 66.40 177.80 7.00 68.0
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 增压塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5
- overallSize
- 60.8*60.8*37.9 MM
- mountingSize
- 50.0*50.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ55.5 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠铜中管
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 32.4 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 21700 RPM
- airFlow
- 66.4 CFM
- airPressure
- 7.0 mmH₂O
- noiseLevel
- 68.0 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 110.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
