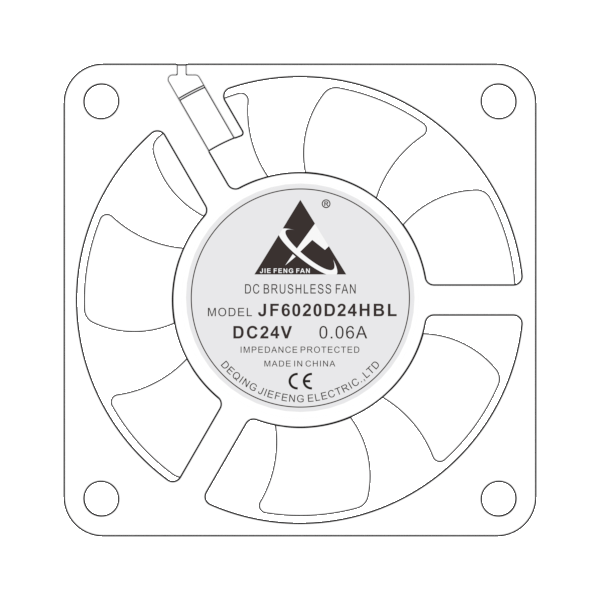

JF6020D24HBL-7A
JF6020D24HBL-7A from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and…
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF6020D12LBL 12 8.5～13.5 0.06 0.72 3500 0.39 13.80 2.87 0.11 27.2 JF6020D12MBL 12 8.5～13.5 0.08 0.96 4000 0.44 15.40 3.91 0.15 30.1 JF6020D12HBL 12 8.5～13.5 0.10 1.20 4500 0.50 17.60 4.85 0.19 33.5 JF6020D12HHBL 12 8.5～13.5 0.12 1.44 5000 0.55 19.60 5.94 0.23 36.5 JF6020D24LBL 24 18～26.5 0.03 0.72 3500 0.39 13.80 2.87 0.11 27.2 JF6020D24MBL 24 18～26.5 0.04 0.96 4000 0.44 15.40 3.91 0.15 30.1 JF6020D24HBL 24 18～26.5 0.05 1.20 4500 0.50 17.60 4.85 0.19 33.5 JF6020D24HHBL 24 18～26.5 0.06 1.44 5000 0.55 19.60 5.94 0.23 36.5
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 60.0*60.0*19.7 MM
- mountingSize
- 50.0*50.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ56.8 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V
- ratedPower
- 0.72/1.44 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 3500/5000 RPM
- airFlow
- 13.8/19.6 CFM
- airPressure
- 0.11/0.23 mmH₂O
- noiseLevel
- 36.5 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 47.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
