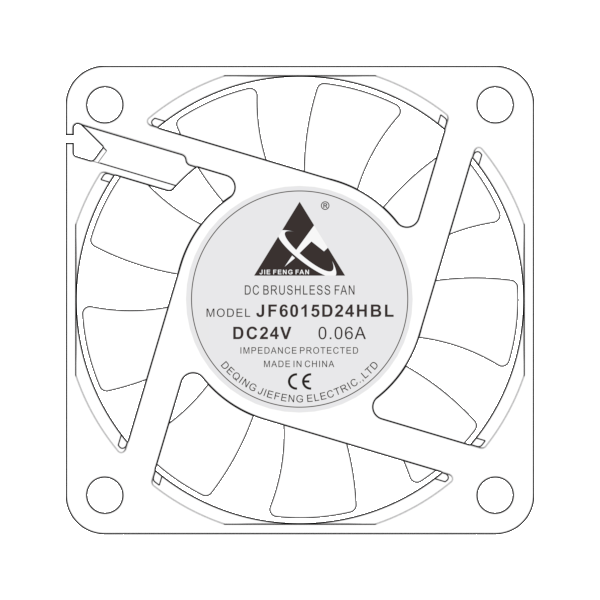

JF6015D24HBL-9
JF6015D24HBL-9 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF6015D05LBL 5 3.5～5.5 0.14 0.72 2000 0.27 9.41 1.35 0.05 21.1 JF6015D05MBL 5 3.5～5.5 0.19 0.96 3000 0.33 11.50 1.85 0.07 24.8 JF6015D05HBL 5 3.5～5.5 0.24 1.20 3500 0.40 14.20 2.62 0.10 29.8 JF6015D05HHBL 5 3.5～5.5 0.29 1.44 4000 0.46 16.40 3.51 0.14 31.2 JF6015D12LBL 12 8.5～13.5 0.06 0.72 2000 0.27 9.41 1.35 0.05 21.1 JF6015D12LMBL 12 8.5～13.5 0.08 0.96 3000 0.33 11.50 1.85 0.07 24.8 JF6015D12MBL 12 8.5～13.5 0.10 1.20 3500 0.40 14.20 2.62 0.10 29.8 JF6015D12LHBL 12 8.5～13.5 0.12 1.44 4000 0.46 16.40 3.51 0.14 31.2 JF6015D12MHBL 12 8.5～13.5 0.14 1.68 4500 0.52 18.30 4.34 0.17 34.8 JF6015D12HBL 12 8.5～13.5 0.16 1.92 5000 0.58 20.50 5.33 0.21 36.6 JF6015D12HHBL 12 8.5～13.5 0.18 2.16 5500 0.63 22.40 6.35 0.25 39.0 JF6015D12VHBL 12 8.5～13.5 0.20 2.40 6000 0.60 21.10 7.34 0.29 41.0 JF6015D24LBL 24 18～26.5 0.03 0.72 2000 0.27 9.41 1.35 0.05 21.1 JF6015D24LMBL 24 18～26.5 0.04 0.96 3000 0.33 11.50 1.85 0.07 24.8 JF6015D24MBL 24 18～26.5 0.05 1.20 3500 0.40 14.20 2.62 0.10 29.8 JF6015D24LHBL 24 18～26.5 0.06 1.44 4000 0.46 16.40 3.51 0.14 31.2 JF6015D24MHBL 24 18～26.5 0.07 1.68 4500 0.52 18.30 4.34 0.17 34.8 JF6015D24HBL 24 18～26.5 0.08 1.92 5000 0.58 20.50 5.33 0.21 36.6 JF6015D24HHBL 24 18～26.5 0.09 2.16 5500 0.63 22.40 6.35 0.25 39.0 JF6015D24VHBL 24 18～26.5 0.10 2.40 6000 0.60 21.10 7.34 0.29 41.0
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 9
- overallSize
- 60.0*60.0*15.4 MM
- mountingSize
- 50.0*50.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ57.6 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 5V/12V/24V
- ratedPower
- 0.72/2.4 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2000/6000 RPM
- airFlow
- 9.41/21.1 CFM
- airPressure
- 0.05/0.29 mmH₂O
- noiseLevel
- 41.0 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 38.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
