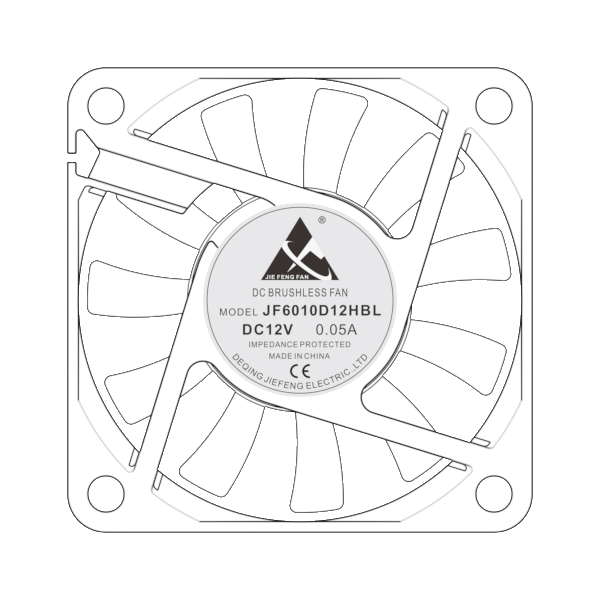

JF6010D12HBL-11
JF6010D12HBL-11 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and…
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF6010D05LBL 5 3.5～5.5 0.07 0.36 3000 0.33 11.60 1.47 0.06 21.0 JF6010D05LMBL 5 3.5～5.5 0.10 0.48 3500 0.39 13.70 1.83 0.07 24.4 JF6010D05MBL 5 3.5～5.5 0.12 0.60 4000 0.45 15.90 2.44 0.10 29.5 JF6010D05LHBL 5 3.5～5.5 0.14 0.72 4500 0.50 17.70 2.95 0.12 30.5 JF6010D05MHBL 5 3.5～5.5 0.17 0.84 5000 0.55 19.60 3.56 0.14 34.4 JF6010D12LBL 12 8.5～13.5 0.03 0.36 3000 0.33 11.60 1.47 0.06 21.0 JF6010D12LMBL 12 8.5～13.5 0.04 0.48 3500 0.39 13.70 1.83 0.07 24.4 JF6010D12MBL 12 8.5～13.5 0.05 0.60 4000 0.45 15.90 2.44 0.10 29.5 JF6010D12LHBL 12 8.5～13.5 0.06 0.72 4500 0.50 17.70 2.95 0.12 30.5 JF6010D12MHBL 12 8.5～13.5 0.07 0.84 5000 0.55 19.60 3.56 0.14 34.4
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 11
- overallSize
- 60.2*60.2*11.1 MM
- mountingSize
- 50.0*50.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ57.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 5V/12V
- ratedPower
- 0.36/0.84 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 3000/5000 RPM
- airFlow
- 11.60/19.6 CFM
- airPressure
- 0.06/0.14 mmH₂O
- noiseLevel
- 34.4 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 21.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
