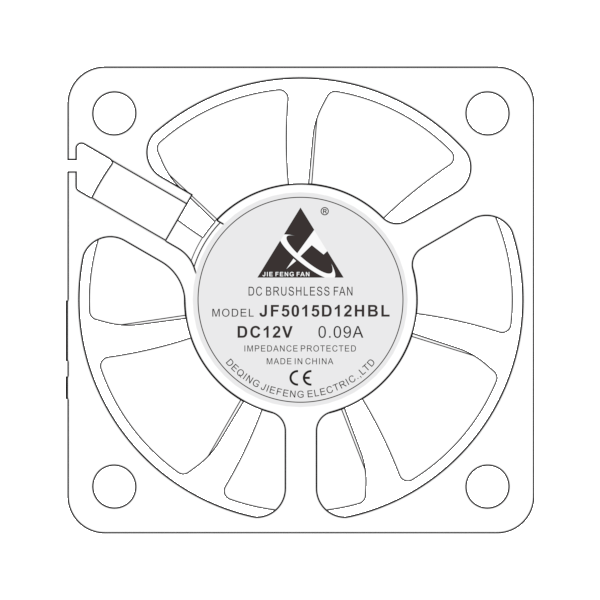

JF5015D12HBL-7
JF5015D12HBL-7 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF5015D05LBL 5 3.5～5.5 0.12 0.60 3500 0.24 8.52 2.06 0.08 24.1 JF5015D05LMBL 5 3.5～5.5 0.14 0.72 4000 0.28 9.77 2.77 0.11 28.1 JF5015D05MBL 5 3.5～5.5 0.19 0.96 4500 0.31 10.80 3.38 0.13 31.2 JF5015D05LHBL 5 3.5～5.5 0.24 1.20 5000 0.34 12.10 4.04 0.16 33.9 JF5015D12LBL 12 8.5～13.5 0.05 0.60 3500 0.24 8.52 2.06 0.08 24.1 JF5015D12LMBL 12 8.5～13.5 0.06 0.72 4000 0.28 9.77 2.77 0.11 28.1 JF5015D12MBL 12 8.5～13.5 0.08 0.96 4500 0.31 10.80 3.38 0.13 31.2 JF5015D12LHBL 12 8.5～13.5 0.10 1.20 5000 0.34 12.10 4.04 0.16 33.9 JF5015D12MHBL 12 8.5～13.5 0.14 1.68 5500 0.38 13.40 4.85 0.19 37.7 JF5015D12HBL 12 8.5～13.5 0.18 2.16 6000 0.41 14.60 5.79 0.23 39.4 JF5015D12HHBL 12 8.5～13.5 0.24 2.88 6500 0.45 15.80 6.68 0.26 41.2 JF5015D12VHBL 12 8.5～13.5 0.30 3.60 7500 0.52 18.30 8.69 0.34 46.1 JF5015D24LBL 24 18～26.5 0.03 0.60 3500 0.24 8.52 2.06 0.08 24.1 JF5015D24LMBL 24 18～26.5 0.03 0.72 4000 0.28 9.77 2.77 0.11 28.1 JF5015D24MBL 24 18～26.5 0.04 0.96 4500 0.31 10.80 3.38 0.13 31.2 JF5015D24LHBL 24 18～26.5 0.05 1.20 5000 0.34 12.10 4.04 0.16 33.9 JF5015D24MHBL 24 18～26.5 0.07 1.68 5500 0.38 13.40 4.85 0.19 37.7 JF5015D24HBL 24 18～26.5 0.09 2.16 6000 0.41 14.60 5.79 0.23 39.4 JF5015D24HHBL 24 18～26.5 0.12 2.88 6500 0.45 15.80 6.68 0.26 41.2 JF5015D24VHBL 24 18～26.5 0.15 3.60 7500 0.52 18.30 8.69 0.34 46.1
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 49.8*49.8*14.8 MM
- mountingSize
- 40.0*40.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ47.8 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 5V/12V/24V
- ratedPower
- 0.60/3.60 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 3500/7500 RPM
- airFlow
- 8.52/18.3 CFM
- airPressure
- 0.08/0.34 mmH₂O
- noiseLevel
- 46.1 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 27.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
