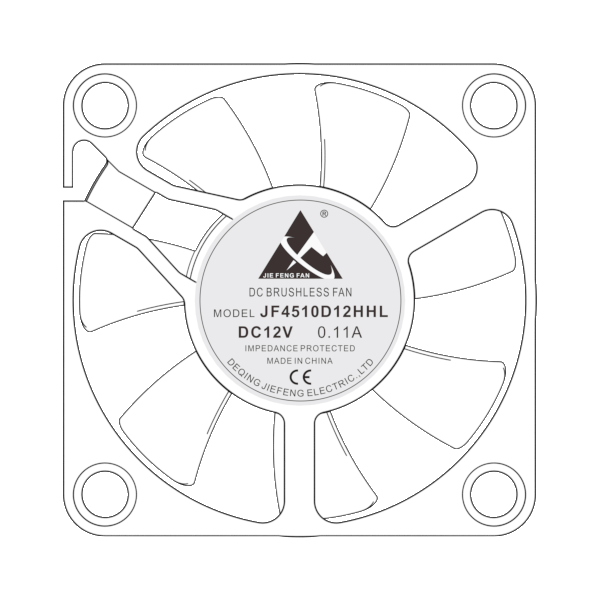

JF4510D12HHL-7
JF4510D12HHL-7 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF4510D05LBL 5 3.5～5.5 0.10 0.48 4000 0.15 5.19 1.60 0.06 24.3 JF4510D05LMBL 5 3.5～5.5 0.12 0.60 4500 0.15 5.41 2.06 0.08 28.1 JF4510D05MBL 5 3.5～5.5 0.14 0.72 5000 0.18 6.46 2.49 0.10 30.2 JF4510D05LHBL 5 3.5～5.5 0.19 0.96 5500 0.19 6.88 2.92 0.12 33.9 JF4510D05MHBL 5 3.5～5.5 0.24 1.20 6000 0.22 7.87 3.68 0.15 36.3 JF4510D05HBL 5 3.5～5.5 0.26 1.32 6500 0.23 8.24 3.89 0.15 37.3 JF4510D05HHBL 5 3.5～5.5 0.31 1.56 7000 0.25 8.85 4.50 0.18 39.3 JF4510D12LBL 12 8.5～13.5 0.04 0.48 4000 0.15 5.19 1.60 0.06 24.3 JF4510D12LMBL 12 8.5～13.5 0.05 0.60 4500 0.15 5.41 2.06 0.08 28.1 JF4510D12MBL 12 8.5～13.5 0.06 0.72 5000 0.18 6.46 2.49 0.10 30.2 JF4510D12LHBL 12 8.5～13.5 0.08 0.96 5500 0.19 6.88 2.92 0.12 33.9 JF4510D12MHBL 12 8.5～13.5 0.10 1.20 6000 0.22 7.87 3.68 0.15 36.3 JF4510D12HBL 12 8.5～13.5 0.11 1.32 6500 0.23 8.24 3.89 0.15 37.3 JF4510D12HHBL 12 8.5～13.5 0.13 1.56 7000 0.25 8.85 4.50 0.18 39.3
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 44.9*44.9*10.7 MM
- mountingSize
- 36.5*36.5 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ43.1 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 5V/12V
- ratedPower
- 0.48/1.56 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 4000/7000 RPM
- airFlow
- 5.19/8.85 CFM
- airPressure
- 0.06/0.18 mmH₂O
- noiseLevel
- 39.3 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 18.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
