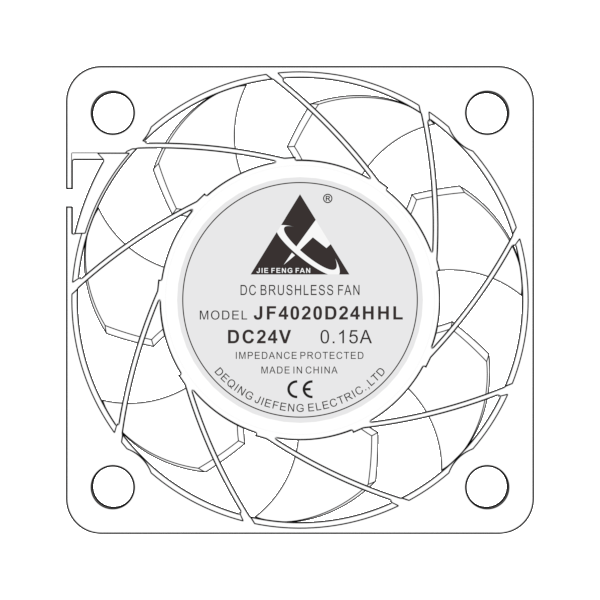

JF4020D24HHL-7
JF4020D24HHL-7 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF4020D12LBL 12 8.5～13.5 0.43 5.16 12000 0.47 16.60 20.83 0.82 53.2 JF4020D12MBL 12 8.5～13.5 0.55 6.60 14000 0.55 19.60 27.18 1.07 53.5 JF4020D12HBL 12 8.5～13.5 0.67 8.04 16000 0.63 22.20 35.05 1.38 55.6 JF4020D12HHBL 12 8.5～13.5 0.85 10.20 18000 0.70 24.80 43.94 1.73 57.7 JF4020D12VHBL 12 8.5～13.5 1.30 15.60 20000 0.83 29.50 59.18 2.33 58.1 JF4020D24LBL 24 18～26.5 0.22 5.16 12000 0.47 16.60 20.83 0.82 53.2 JF4020D24MBL 24 18～26.5 0.28 6.60 14000 0.55 19.60 27.18 1.07 53.5 JF4020D24HBL 24 18～26.5 0.35 8.04 16000 0.63 22.20 35.05 1.38 55.6 JF4020D24HHBL 24 18～26.5 0.45 10.20 18000 0.70 24.80 43.94 1.73 57.7 JF4020D24VHBL 24 18～26.5 0.75 15.60 20000 0.83 29.50 59.18 2.33 58.1
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 增压塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 40.0*40.0*19.9 MM
- mountingSize
- 32.0*32.0 MM
- mountingHoleDiameter
- Φ3.5
- Ventilation Opening Size
- φ38.5 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V
- ratedPower
- 5.16/15.60 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 12000/20000 RPM
- airFlow
- 16.6/29.5 CFM
- airPressure
- 0.82/2.33 mmH₂O
- noiseLevel
- 58.1 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 30.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
