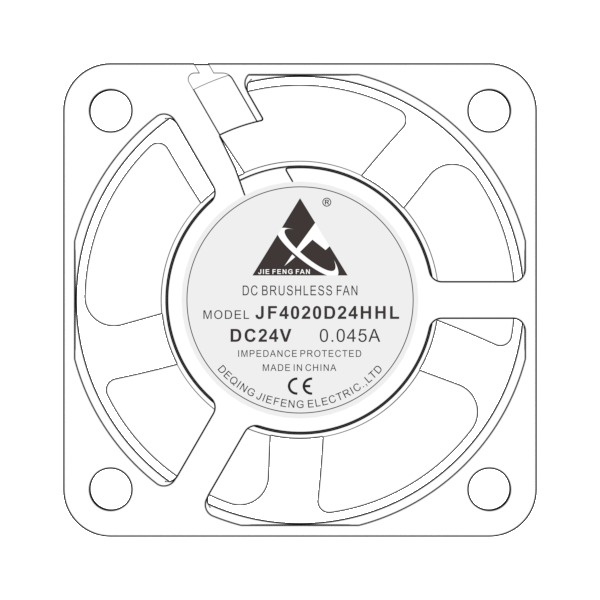

JF4020D24HHL-5
JF4020D24HHL-5 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF4020D05LBL 5 3.5～5.5 0.15 0.72 5000 0.15 5.19 2.62 0.10 20.9 JF4020D05MBL 5 3.5～5.5 0.17 0.84 6000 0.18 6.41 3.86 0.15 26.7 JF4020D05HBL 5 3.5～5.5 0.19 0.96 6500 0.19 6.87 4.60 0.18 29.1 JF4020D05HHBL 5 3.5～5.5 0.22 1.08 7500 0.22 7.90 5.79 0.23 32.7 JF4020D05VHBL 5 3.5～5.5 0.24 1.20 8500 0.25 8.77 7.52 0.30 37.2 JF4020D12LBL 12 8.5～13.5 0.06 0.72 5000 0.15 5.19 2.62 0.10 20.9 JF4020D12MBL 12 8.5～13.5 0.07 0.84 6000 0.18 6.41 3.86 0.15 26.7 JF4020D12HBL 12 8.5～13.5 0.08 0.96 6500 0.19 6.87 4.60 0.18 29.1 JF4020D12HHBL 12 8.5～13.5 0.09 1.08 7500 0.22 7.90 5.79 0.23 32.7 JF4020D12VHBL 12 8.5～13.5 0.10 1.20 8500 0.25 8.77 7.52 0.30 37.2 JF4020D24LBL 24 18～26.5 0.03 0.72 5000 0.15 5.19 2.62 0.10 20.9 JF4020D24MBL 24 18～26.5 0.04 0.84 6000 0.18 6.41 3.86 0.15 26.7 JF4020D24HBL 24 18～26.5 0.04 0.96 6500 0.19 6.87 4.60 0.18 29.1 JF4020D24HHBL 24 18～26.5 0.05 1.08 7500 0.22 7.90 5.79 0.23 32.7 JF4020D24VHBL 24 18～26.5 0.05 1.20 8500 0.25 8.77 7.52 0.30 37.2
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5
- overallSize
- 40.0*40.0*19.9 MM
- mountingSize
- 32.0*32.0 MM
- mountingHoleDiameter
- Φ3.5
- Ventilation Opening Size
- φ38.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 5V/12V/24V
- ratedPower
- 0.72/1.20 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 5000/8500 RPM
- airFlow
- 5.19/8.77 CFM
- airPressure
- 0.10/0.30 mmH₂O
- noiseLevel
- 37.2 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 25.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
