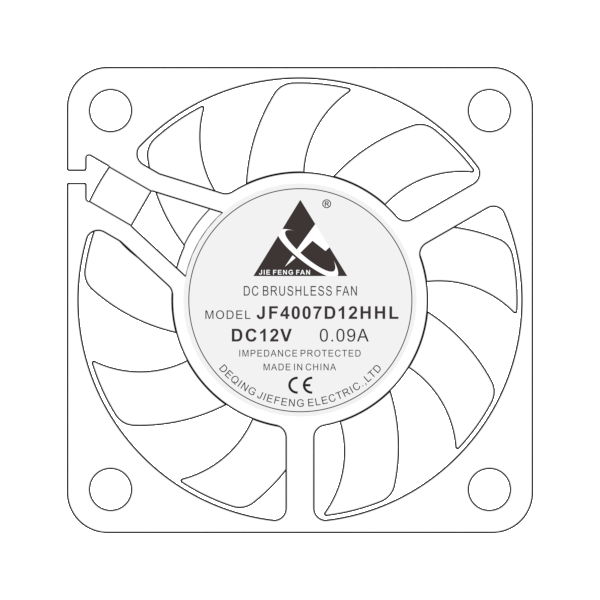

JF4007D12HHL-9
JF4007D12HHL-9 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF4007D05LBL 5 3.5～5.5 0.12 0.60 4500 0.09 3.14 0.84 0.03 23.5 JF4007D05LMBL 5 3.5～5.5 0.14 0.72 5000 0.10 3.67 1.17 0.05 24.5 JF4007D05MBL 5 3.5～5.5 0.17 0.84 5500 0.11 3.96 1.40 0.06 25.6 JF4007D05LHBL 5 3.5～5.5 0.19 0.96 6000 0.13 4.60 1.65 0.07 27.5 JF4007D05MHBL 5 3.5～5.5 0.20 1.02 6500 0.14 5.06 2.01 0.08 29.3 JF4007D05HBL 5 3.5～5.5 0.22 1.08 7000 0.15 5.31 2.16 0.09 30.4 JF4007D05HHBL 5 3.5～5.5 0.24 1.20 7500 0.15 5.37 2.39 0.09 31.5 JF4007D12LBL 12 8.5～13.5 0.05 0.60 4500 0.09 3.14 0.84 0.03 23.5 JF4007D12LMBL 12 8.5～13.5 0.06 0.72 5000 0.10 3.67 1.17 0.05 24.5 JF4007D12MBL 12 8.5～13.5 0.07 0.84 5500 0.11 3.96 1.40 0.06 25.6 JF4007D12LHBL 12 8.5～13.5 0.08 0.96 6000 0.13 4.60 1.65 0.07 27.5 JF4007D12MHBL 12 8.5～13.5 0.09 1.02 6500 0.14 5.06 2.01 0.08 29.3 JF4007D12HBL 12 8.5～13.5 0.09 1.08 7000 0.15 5.31 2.16 0.09 30.4 JF4007D12HHBL 12 8.5～13.5 0.10 1.20 7500 0.15 5.37 2.39 0.09 31.5
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 9
- overallSize
- 40.1*40.1*7.2 MM
- mountingSize
- 32.0*32.0 MM
- mountingHoleDiameter
- Φ3.3
- Ventilation Opening Size
- φ38.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 5V/12V
- ratedPower
- 0.60/1.20 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 4500/7500 RPM
- airFlow
- 3.14/5.37 CFM
- airPressure
- 0.03/0.09 mmH₂O
- noiseLevel
- 31.5 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 11.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
