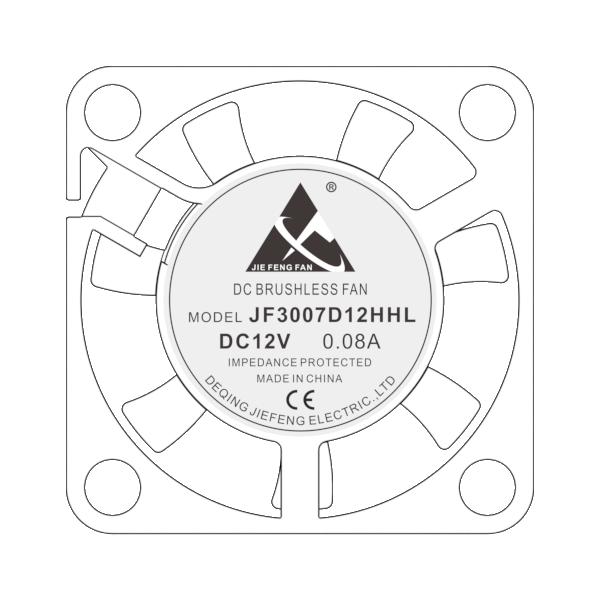

JF3007D12HHL-7
JF3007D12HHL-7 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF3007D05LBL 5 3~6 0.14 0.72 6000 0.06 1.99 1.70 0.07 25.5 JF3007D05MBL 5 3~6 0.17 0.84 8000 0.08 2.66 2.69 0.11 27.4 JF3007D05HBL 5 3~6 0.19 0.96 10000 0.10 3.46 4.14 0.16 30.1 JF3007D05HHBL 5 3~6 0.22 1.08 11000 0.11 3.78 4.93 0.19 32.0 JF3007D05VHBL 5 3~6 0.24 1.20 13000 0.12 4.25 8.26 0.33 34.9 JF3007D12LBL 12 8.5~13.5 0.06 0.72 6000 0.06 1.99 1.70 0.07 25.5 JF3007D12MBL 12 8.5~13.5 0.07 0.84 8000 0.08 2.66 2.69 0.11 27.4 JF3007D12HBL 12 8.5~13.5 0.08 0.96 10000 0.10 3.46 4.14 0.16 30.1 JF3007D12HHBL 12 8.5~13.5 0.09 1.08 11000 0.11 3.78 4.93 0.19 32.0 JF3007D12VHBL 12 8.5~13.5 0.10 1.20 13000 0.12 4.25 8.26 0.33 34.9
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 30.0*30.0*7.8 MM
- mountingSize
- 23.8*23.8 MM
- mountingHoleDiameter
- Φ3.3
- Ventilation Opening Size
- φ28.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 5V/12V
- ratedPower
- 0.72/1.20 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 6000/13000 RPM
- airFlow
- 1.99/4.25 CFM
- airPressure
- 0.07/0.33 mmH₂O
- noiseLevel
- 34.9 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 7.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
