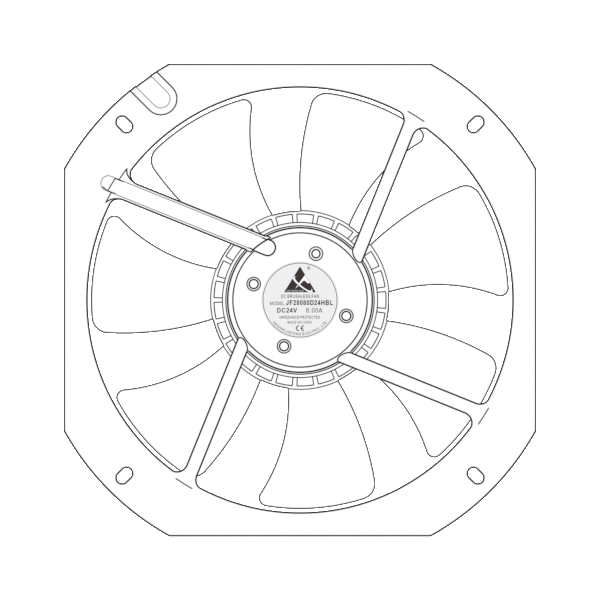

JF28080D24HBL-7
JF28080D24HBL-7 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF28080D12LBL 12 8.5～13.5 9.60 115.20 2600 30.97 1094.20 24.96 0.98 68.0 JF28080D12LMBL 12 8.5～13.5 10.80 129.60 2800 32.84 1160.42 26.70 1.05 71.3 JF28080D12MBL 12 8.5～13.5 12.00 144.00 3000 34.15 1206.71 28.11 1.11 74.8 JF28080D24LBL 24 18～26.5 4.80 115.20 2600 30.97 1094.20 24.96 0.98 68.0 JF28080D24LMBL 24 18～26.5 5.40 129.60 2800 32.84 1160.42 26.70 1.05 71.3 JF28080D24MBL 24 18～26.5 6.00 144.00 3000 34.15 1206.71 28.11 1.11 74.8 JF28080D48LBL 48 36～54 2.40 115.20 2600 30.97 1094.20 24.96 0.98 68.0 JF28080D48LMBL 48 36～54 2.70 129.60 2800 32.84 1160.42 26.70 1.05 71.3 JF28080D48MBL 48 36～54 3.00 144.00 3000 34.15 1206.71 28.11 1.11 74.8
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 金属框
- housingMaterial
- ADC/12
- surfaceTreatment
- 塑粉喷涂
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 280.3*280.3*80.7 MM
- mountingSize
- 208.0*208.0 MM
- mountingHoleDiameter
- Φ5.3
- Ventilation Opening Size
- φ252.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 115.2/144.0 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2600/3000 RPM
- airFlow
- 1094.2/1206.71 CFM
- airPressure
- 0.98/1.11 inch-H₂O
- noiseLevel
- 74.8 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 2400.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
