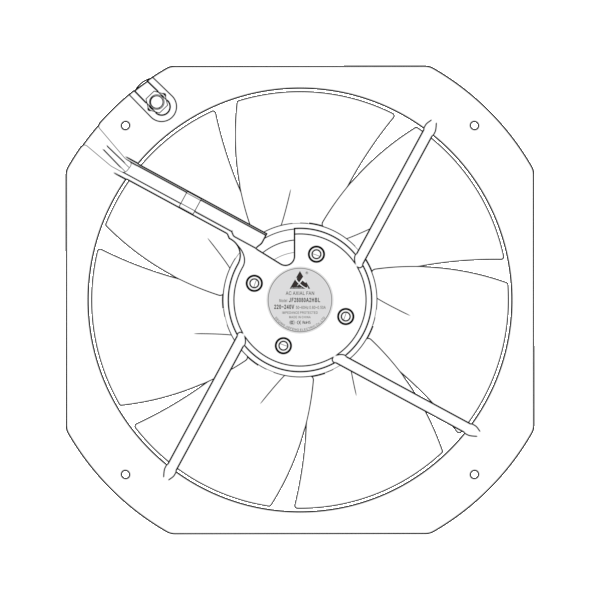

JF28080A2HBL/W-7M
JF28080A2HBL/W-7M from Jiefeng Electric. AC Axial Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview
Product dimension drawing： Unit：mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz Style VAC AMP Watt RPM CFM mm H ² O dBA JF28080A1HBL 50/60 Ball 110 1.50/1.00 165.0/110.0 2550/2700 1090/113 16/20 68/70 JF28080A2HBL 50/60 Ball 220 0.82/0.60 180.4/132.0 2550/2700 1090/113 16/20 68/70 JF28080A3HBL 50/60 Ball 380 0.35/0.30 133.0/114.0 2550/2700 1090/113 16/20 68/70
Product specifications
- productType
- 轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通铝框
- housingMaterial
- ADC/12
- surfaceTreatment
- 塑粉喷涂
- bladeMaterial
- 金属 Q235
- bladeCount
- 7
- overallSize
- 281.0*281.0*81.5 MM
- mountingSize
- 208.0*208.0 MM
- mountingHoleDiameter
- M6.0
- Ventilation Opening Size
- φ252.0 MM
- motorType
- 外转子风机
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 114.0/180.4 W
- workingTemperature
- -30℃~+80℃
- workingHumidity
- 30%~70%RH
- speed
- 2550/2700 RPM
- airFlow
- 1090/1130 CFM
- airPressure
- 0.63/0.79 inch-H₂O
- noiseLevel
- 68/70 dBA
- protectionGrade
- IP43
- lifeSpan
- 40000 h
- weight
- 2820.0 g
- wiringMethod
- 端子
- safetyCertification
- 3C/CE/ROHS
