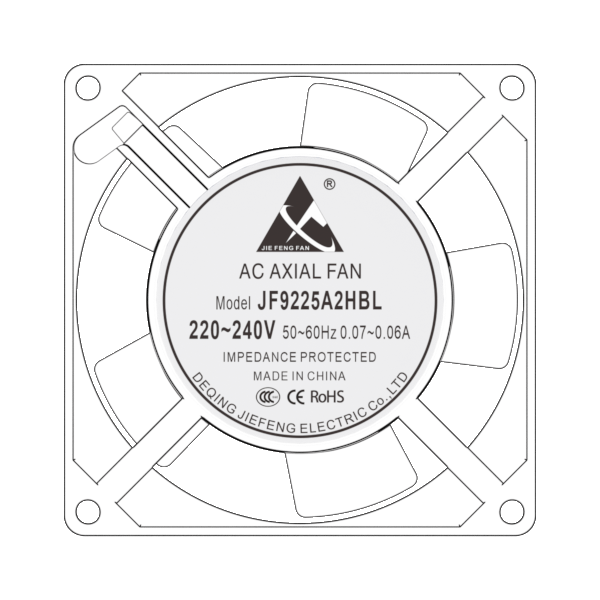

JF9225A2HBL/T-5
JF9225A2HBL/T-5 from Jiefeng Electric. AC Axial Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz Style VAC AMP Watt RPM CFM mm H ² O dBA JF9225A1HSL 50/60 Sleeve 110 0.17/0.15 18.7/16.5 2350/2900 29/36 2.3/3.3 33/43 JF9225A1HBL 50/60 Ball 110 0.17/0.15 18.7/16.5 2450/3000 30/37 2.4/3.4 34/40 JF9225A2HSL 50/60 Sleeve 220 0.09/0.07 19.8/15.4 2350/2900 29/36 2.3/3.3 33/43 JF9225A2HBL 50/60 Ball 220 0.09/0.07 19.8/15.4 2450/3000 30/37 2.4/3.4 34/40 JF9225A3HSL 50/60 Sleeve 380 0.05/0.04 19.0/15.2 2350/2900 29/36 2.3/3.3 33/43 JF9225A3HBL 50/60 Ball 380 0.05/0.04 19.0/15.2 2450/3000 30/37 2.4/3.4 34/40
Product specifications
- productType
- 轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通铝框
- housingMaterial
- ADC/12
- surfaceTreatment
- 塑粉喷涂
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5
- overallSize
- 92.5*92.5*26.2 MM
- mountingSize
- 82.5*82.5 MM
- mountingHoleDiameter
- Φ4.3/M5.0
- Ventilation Opening Size
- φ88.0 MM
- motorType
- 罩极电机
- insulationClass
- B级
- driveType
- 含油/滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 15.2/19.8 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2350/3000 RPM
- airFlow
- 29/37 CFM
- airPressure
- 0.09/0.13 inch-H₂O
- noiseLevel
- 33/43 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 246.0g
- wiringMethod
- 引线/插片
- safetyCertification
- 3C/CE/ROHS
- customFunction
- 双电压
Related products

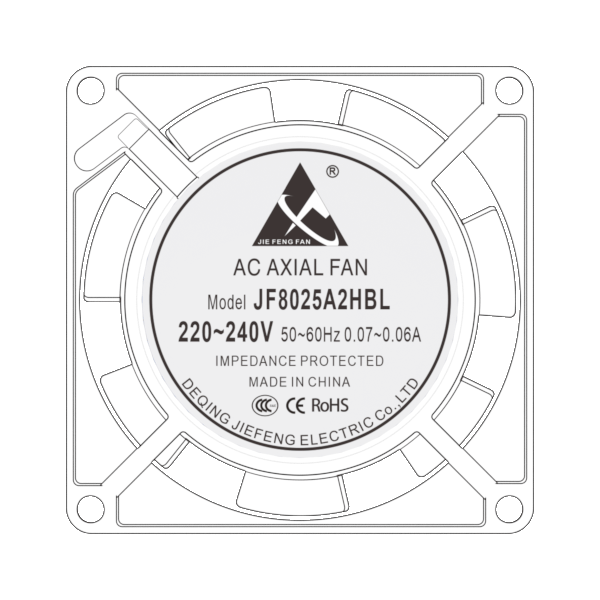

JF8025A2HBL/T-7
Product dimension drawing： Unit: mm Mounting Hole Dimension Drawing： Unit: mm Specification Table: Model Freq Bearing Voltage Current Power…

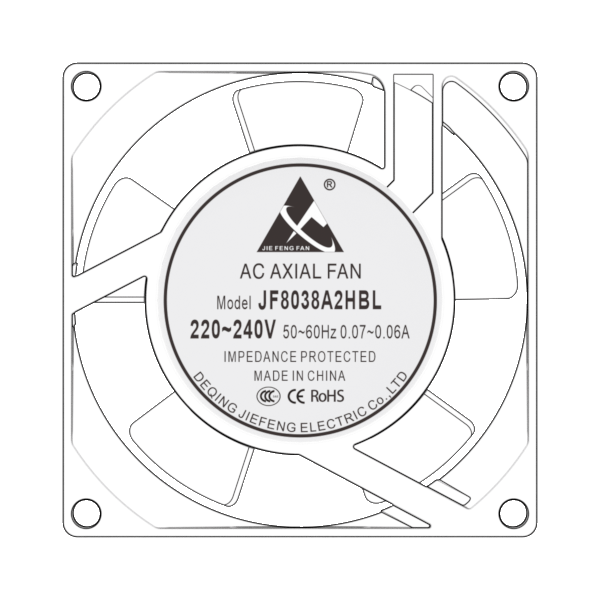

JF8038A2HBL/T-5
Product dimension drawing： Unit: mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz …
JF9238A2HBL/T
Product dimension drawing： Unit: mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz …
JF11025A2HBL/T
Product dimension drawing： Unit: mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz …
JF12025A2HBL/T
Product dimension drawing： Unit：mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz S…

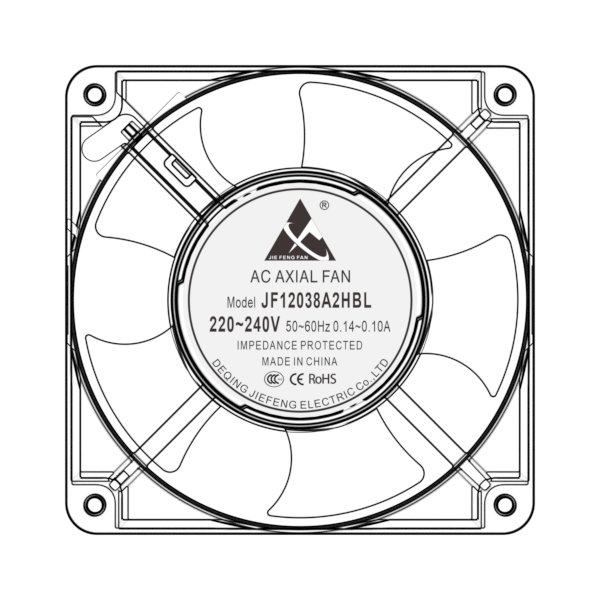

JF12038A2HBL/T
