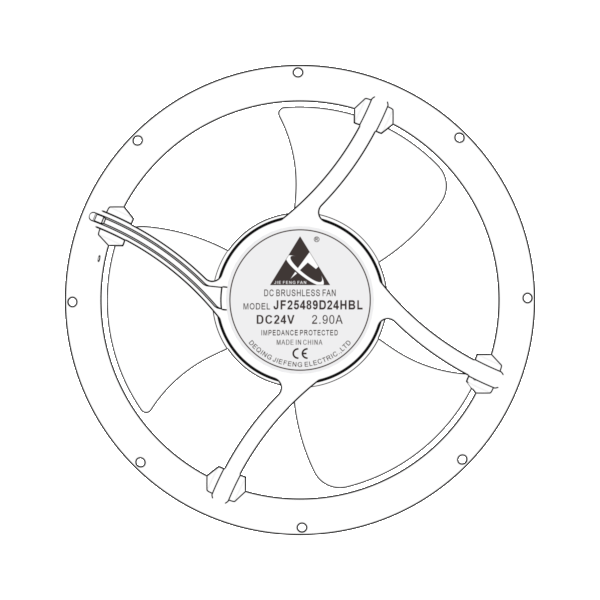

JF25489D24HBL-3
JF25489D24HBL-3 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF25489D12LBL 12 8.5～13.5 0.75 9.00 1000 8.64 305.30 11.68 0.46 53.4 JF25489D12LMBL 12 8.5～13.5 3.50 42.00 2000 15.53 548.60 15.49 0.61 66.1 JF25489D12MBL 12 8.5～13.5 5.50 66.00 2500 19.58 691.80 24.64 0.97 71.2 JF25489D12LHBL 12 8.5～13.5 7.17 86.00 3000 23.99 847.80 32.51 1.28 75.6 JF25489D12MHBL 12 8.5～13.5 11.17 134.00 3500 29.31 1035.60 38.61 1.52 80.4 JF25489D12HBL 12 8.5～13.5 15.31 183.70 4000 36.69 1296.40 42.16 1.66 89.6 JF25489D24LBL 24 18～26.5 0.50 12.00 1000 8.64 305.30 11.68 0.46 53.4 JF25489D24LMBL 24 18～26.5 1.50 36.00 2000 15.53 548.60 15.49 0.61 66.1 JF25489D24MBL 24 18～26.5 2.90 69.60 2500 19.58 691.80 24.64 0.97 71.2 JF25489D24LHBL 24 18～26.5 3.70 88.80 3000 23.99 847.80 32.51 1.28 75.6 JF25489D2MHBL 24 18～26.5 5.70 136.80 3500 29.31 1035.60 38.61 1.52 80.4 JF25489D24HBL 24 18～26.5 7.80 187.20 4000 36.69 1296.40 42.16 1.66 89.6 JF25489D48LBL 48 36～54 0.20 9.60 1000 8.64 305.30 11.68 0.46 53.4 JF25489D48LMBL 48 36～54 0.80 38.40 2000 15.53 548.60 15.49 0.61 66.1 JF25489D48MBL 48 36～54 1.40 67.20 2500 19.58 691.80 24.64 0.97 71.2 JF25489D48LHBL 48 36～54 1.90 91.20 3000 23.99 847.80 32.51 1.28 75.6 JF25489D48MHBL 48 36～54 3.00 144.00 3500 29.31 1035.60 38.61 1.52 80.4 JF25489D48HBL 48 36～54 4.00 192.00 4000 36.69 1296.40 42.16 1.66 89.6
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 金属框
- housingMaterial
- ADC/12
- surfaceTreatment
- 电泳
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 6
- overallSize
- φ254.0*89.9 MM
- mountingSize
- 246.0*246.0 MM
- mountingHoleDiameter
- M5.0
- Ventilation Opening Size
- φ223.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 9.0/192.0 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 1000/4000 RPM
- airFlow
- 305.3/1296.4 CFM
- airPressure
- 0.46/1.66 inch-H₂O
- noiseLevel
- 89.6 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 2000.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
