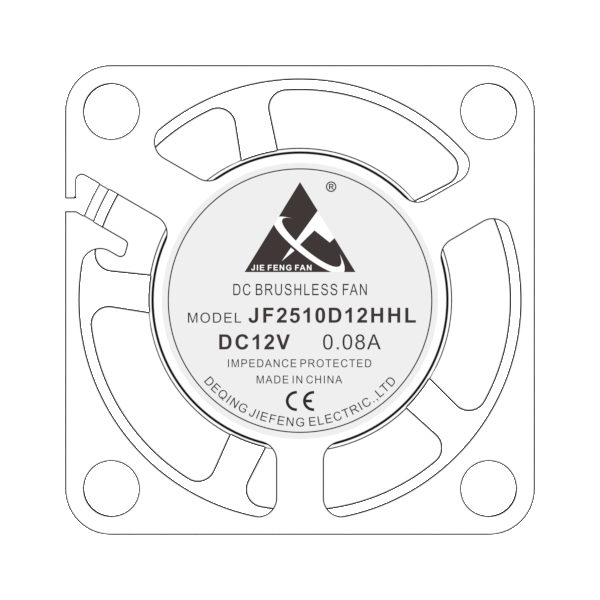

JF2510D12HHL-5
JF2510D12HHL-5 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF2510D05LBL 5 3~6 0.14 0.72 8500 0.03 1.01 1.85 0.07 19.6 JF2510D05MBL 5 3~6 0.17 0.84 10500 0.04 1.44 3.25 0.13 23.5 JF2510D05HBL 5 3~6 0.19 0.96 12000 0.05 1.72 3.89 0.15 26.4 JF2510D05HHBL 5 3~6 0.22 1.08 13500 0.07 2.35 6.86 0.27 31.2 JF2510D05VHBL 5 3~6 0.24 1.20 16000 0.07 2.63 8.74 0.34 31.2 JF2510D12LBL 12 8.5~13.5 0.06 0.72 8500 0.03 1.01 1.85 0.07 19.6 JF2510D12MBL 12 8.5~13.5 0.07 0.84 10500 0.04 1.44 3.25 0.13 23.5 JF2510D12HBL 12 8.5~13.5 0.08 0.96 12000 0.05 1.72 3.89 0.15 26.4 JF2510D12HHBL 12 8.5~13.5 0.09 1.08 13500 0.07 2.35 6.86 0.27 31.2 JF2510D12VHBL 12 8.5~13.5 0.10 1.20 16000 0.07 2.63 8.74 0.34 31.2
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5
- overallSize
- 25.6*25.6*10.5 MM
- mountingSize
- 20.0*20.0 MM
- mountingHoleDiameter
- Φ3.0
- Ventilation Opening Size
- φ23.6 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 5V/12V
- ratedPower
- 0.72/1.20 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 8500/16000 RPM
- airFlow
- 1.01/2.63 CFM
- airPressure
- 0.07/0.34 mmH₂O
- noiseLevel
- 31.2 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 6.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
