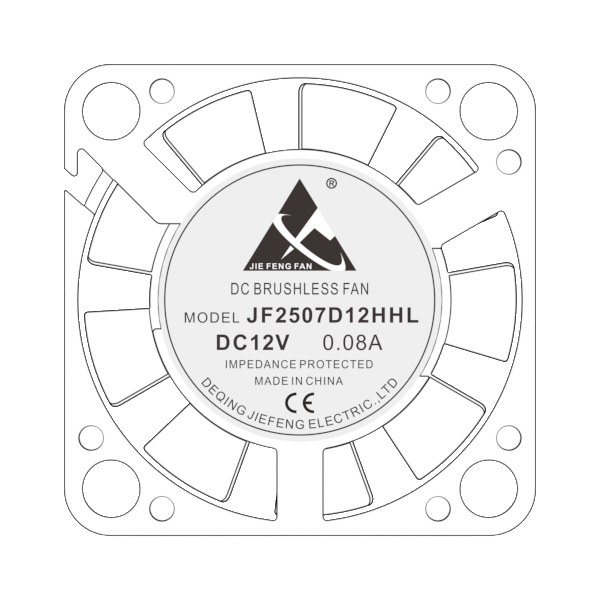

JF2507D12HHL-9B
JF2507D12HHL-9B from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and…
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF2507D05LBL 5 3~6 0.14 0.72 7000 0.03 1.22 2.16 0.09 19.6 JF2507D05MBL 5 3~6 0.17 0.84 10000 0.04 1.55 3.10 0.12 23.5 JF2507D05HBL 5 3~6 0.19 0.96 14000 0.05 1.90 3.81 0.15 26.4 JF2507D05HHBL 5 3~6 0.22 1.08 17000 0.08 2.81 4.50 0.18 31.2 JF2507D12LBL 12 8.5~13.5 0.06 0.72 7000 0.03 1.22 2.16 0.09 19.6 JF2507D12MBL 12 8.5~13.5 0.07 0.84 10000 0.04 1.55 3.10 0.12 23.5 JF2507D12HBL 12 8.5~13.5 0.08 0.96 14000 0.05 1.90 3.81 0.15 26.4 JF2507D12HHBL 12 8.5~13.5 0.09 1.08 17000 0.08 2.81 4.50 0.18 31.2
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 9
- overallSize
- 25.05*25.05*7.1 MM
- mountingSize
- 20.0*20.0 MM
- mountingHoleDiameter
- Φ3.0
- Ventilation Opening Size
- φ23.5 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 5V/12V
- ratedPower
- 0.72/1.08 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 7000/17000 RPM
- airFlow
- 1.22/2.81 CFM
- airPressure
- 0.09/0.18 mmH₂O
- noiseLevel
- 31.2 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 4.6 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
