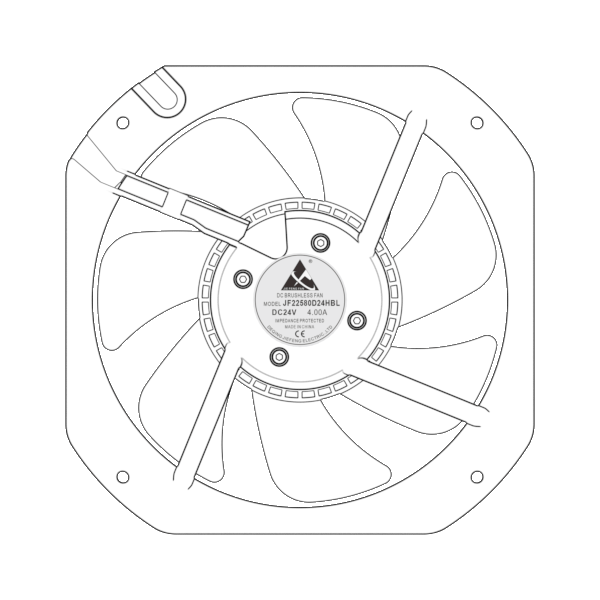

JF22580D24HBL-7
JF22580D24HBL-7 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF22580D12HBL 12 8.5～13.5 8.00 96.00 3000 21.34 754.10 26.20 1.03 69.5 JF22580D24LBL 24 18～26.5 0.80 19.20 2200 15.65 553.00 14.10 0.56 62.0 JF22580D24MBL 24 18～26.5 2.00 48.00 2700 19.21 678.70 21.30 0.84 66.9 JF22580D24HBL 24 18～26.5 4.00 96.00 3200 22.76 804.40 29.80 1.17 71.0 JF22580D48LBL 48 36～54 0.60 28.80 2200 15.65 553.00 14.10 0.56 62.0 JF22580D48MBL 48 36～54 1.00 48.00 2700 19.21 678.70 21.30 0.84 66.9 JF22580D48HBL 48 36～54 2.00 96.00 3200 22.76 804.40 29.80 1.17 71.0
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 金属框
- housingMaterial
- ADC/12
- surfaceTreatment
- 塑粉喷涂
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 225.0*225.0*80.1 MM
- mountingSize
- 169.5*169.5 MM
- mountingHoleDiameter
- M5.0
- Ventilation Opening Size
- φ202.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 19.2/96.0 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2200/3200 RPM
- airFlow
- 553.00/804.40 CFM
- airPressure
- 0.56/1.17 inch-H₂O
- noiseLevel
- 71.0 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 1900.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
