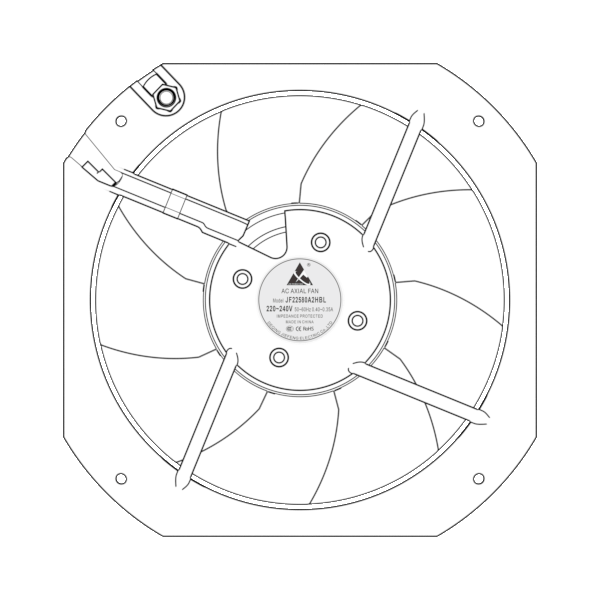

JF22580A2HBL/W-9M
JF22580A2HBL/W-9M from Jiefeng Electric. AC Axial Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview
Product dimension drawing： Unit：mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz Style VAC AMP Watt RPM CFM mm H ² O dBA JF22580A1HBL 50/60 Ball 110 0.70/0.58 77.0/63.8 2550/2800 530/600 14/17 65/68 JF22580A2HBL 50/60 Ball 220 0.40/0.30 88.0/66.0 2550/2800 530/600 14/17 65/68 JF22580A3HBL 50/60 Ball 380 0.25/0.20 95.0/76.0 2550/2800 530/600 14/17 65/68
Product specifications
- productType
- 轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通铝框
- housingMaterial
- ADC/12
- surfaceTreatment
- 塑粉喷涂
- bladeMaterial
- 金属 Q235
- bladeCount
- 9
- overallSize
- 225.0*225.0*80.3 MM
- mountingSize
- 170.0*170.0 MM
- mountingHoleDiameter
- M5.0
- Ventilation Opening Size
- φ199.0 MM
- motorType
- 外转子风机
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 66.0/95.0 W
- workingTemperature
- -30℃~+80℃
- workingHumidity
- 30%~70%RH
- speed
- 2550/2800 RPM
- airFlow
- 530/600 CFM
- airPressure
- 0.55/0.67 inch-H₂O
- noiseLevel
- 65/68 dBA
- protectionGrade
- IP43
- lifeSpan
- 40000 h
- weight
- 2100.0 g
- wiringMethod
- 端子
- safetyCertification
- 3C/CE/ROHS
