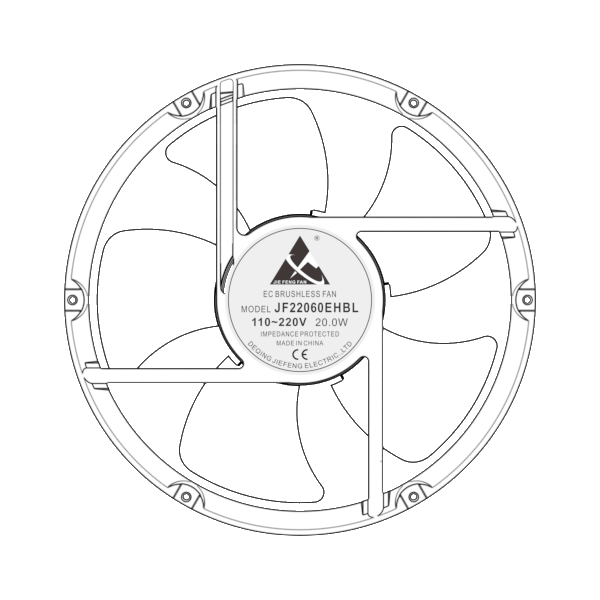

JF22060EHBL-5
JF22060EHBL-5 from Jiefeng Electric. EC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and O…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Power Speed Airflow Pressure Noise PART.NO. VAC/DC VAC/DC Watt RPM M ³ /min CFM mmH2O InH2O dBA JF22060ELBL 110~220 85～260 11.00 2000 10.562 373.23 8.89 0.35 53.40 JF22060EMBL 110~220 85～260 20.00 2500 13.247 468.08 14.22 0.56 60.30 JF22060EHBL 110~220 85～260 55.00 3000 15.832 559.45 20.83 0.82 65.40
Product specifications
- productType
- 轴流风机
- brand
- JIEFENGFAN
- housingType
- 金属框
- housingMaterial
- ADC/12
- surfaceTreatment
- 电泳
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5
- overallSize
- φ220.0*61.4 MM
- mountingSize
- 210.0*210.5 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ197.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流直流
- ratedVoltage
- 110V/220V
- ratedPower
- 11/55 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2000/3000 RPM
- airFlow
- 373.23/559.45 CFM
- airPressure
- 0.35/0.82 inch-H₂O
- noiseLevel
- 65.4 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 840.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
