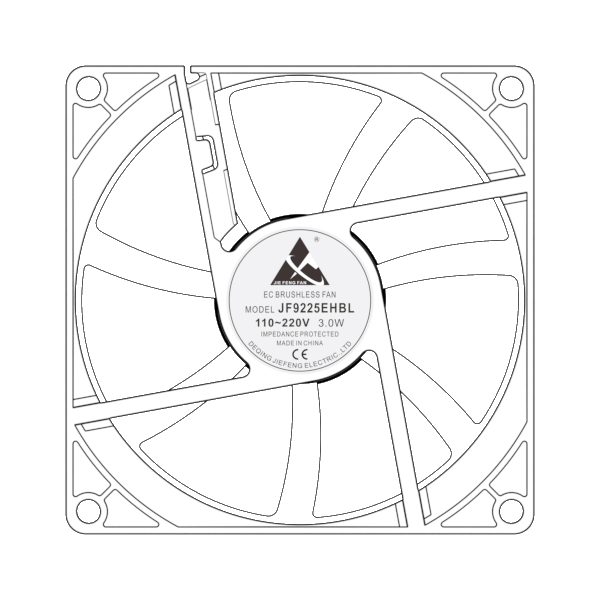

JF9225EHBL-7
JF9225EHBL-7 from Jiefeng Electric. EC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and OD…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Power Speed Airflow Pressure Noise PART.NO. VAC/DC VAC/DC Watt RPM M ³ /min CFM mmH2O InH2O dBA JF9225ELBL 110~220 85～260 2.50 3000 1.275 45.07 5.08 0.20 38.10 JF9225EMBL 110~220 85～260 3.00 3500 1.472 52.03 7.11 0.28 43.00 JF9225EHBL 110~220 85～260 4.00 4000 1.665 58.85 9.14 0.36 46.30
Product specifications
- productType
- 轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 92.0*92.0*24.8 MM
- mountingSize
- 82.0*82.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ88.9 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 含油/滚珠
- powerType
- 交流直流
- ratedVoltage
- 110V/220V
- ratedPower
- 2.5/4.0 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 3000/4000 RPM
- airFlow
- 45.07/58.85 CFM
- airPressure
- 0.20/0.36 inch-H₂O
- noiseLevel
- 46.3 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 73.0 g
- wiringMethod
- 引线
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
Related products

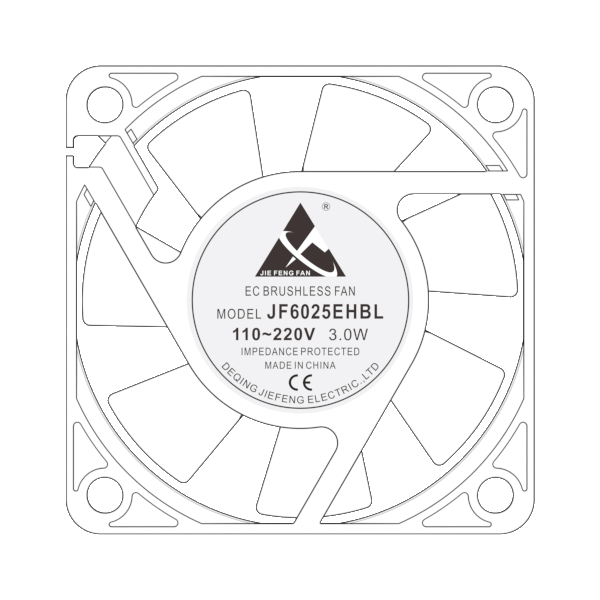

JF6025EHBL-7
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Power Speed Airflow Pressure Noise PART.NO. …

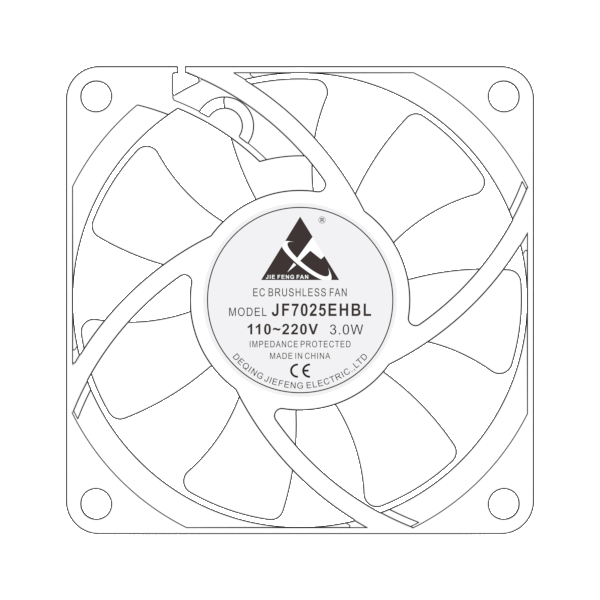

JF7025EHBL-7
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Power Speed Airflow Pressure Noise PART.NO. …

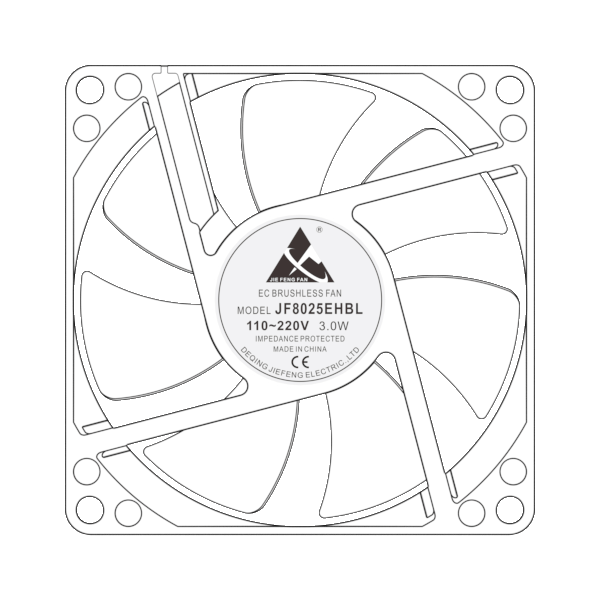

JF8025EHBL-7
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Power Speed Airflow Pressure Noise PART.NO. …

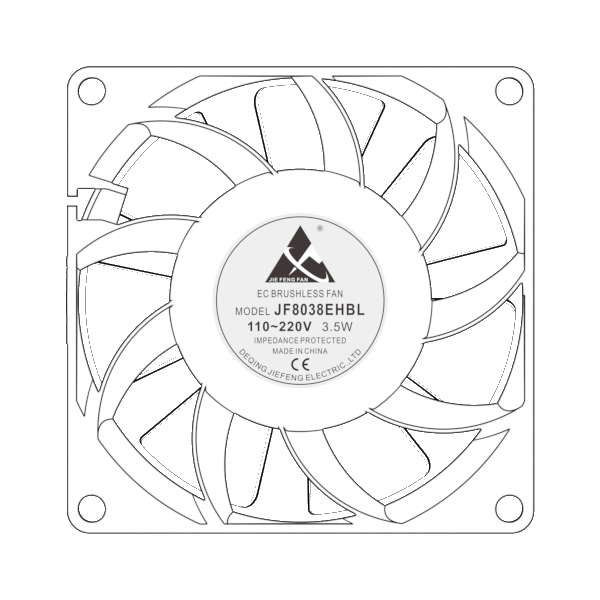

JF8038EHBL-7
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Power Speed Airflow Pressure Noise PART.NO. …

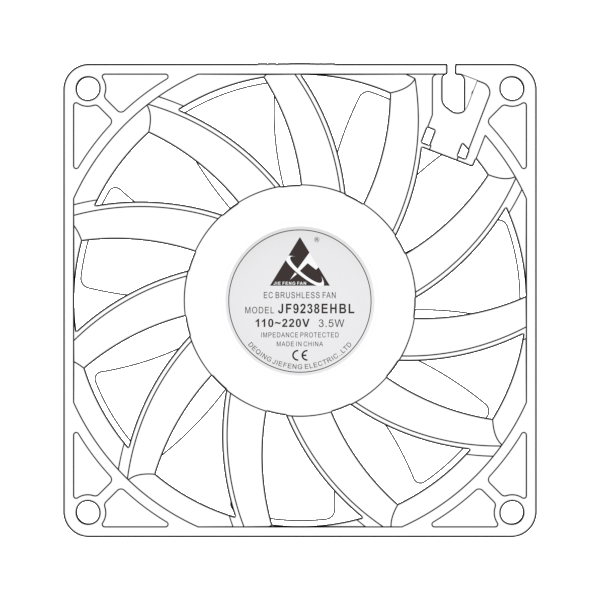

JF9238EHBL-7
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Power Speed Airflow Pressure Noise PART.NO. …

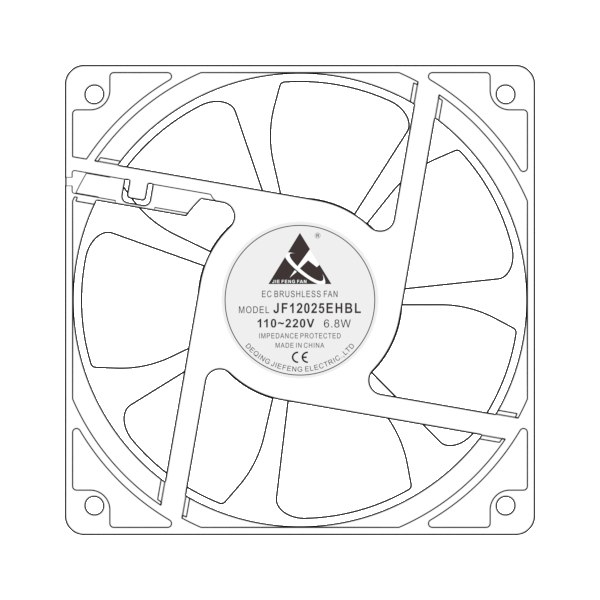

JF12025EHBL-7
