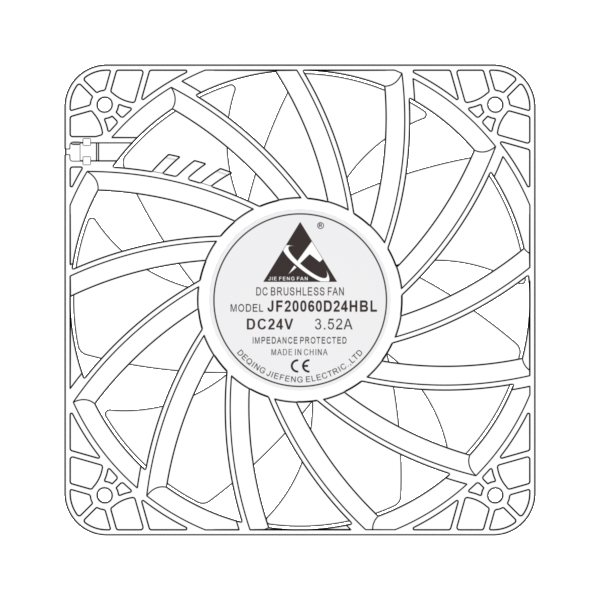

JF20060D24HBL-7
JF20060D24HBL-7 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M³/min CFM mmH2O InH2O dBA JF20060D12LBL 12 8.5～13.5 4.40 52.80 2500 13.40 473.42 21.21 0.84 60.8 JF20060D12MBL 12 8.5～13.5 7.00 84.00 3000 16.10 568.95 28.27 1.11 65.8 JF20060D12HBL 12 8.5～13.5 8.00 96.00 3500 17.40 614.75 35.48 1.40 69.2 JF20060D24LBL 24 18～26.5 2.20 52.80 2500 13.40 473.42 21.21 0.84 60.8 JF20060D24MBL 24 18～26.5 3.50 84.00 3000 16.10 568.95 28.27 1.11 65.8 JF20060D24HBL 24 18～26.5 4.00 96.00 3500 17.40 614.75 35.48 1.40 69.2 JF20060D48LBL 48 36～54 1.10 52.80 2500 13.40 473.42 21.21 0.84 60.8 JF20060D48MBL 48 36～54 1.75 84.00 3000 16.10 568.95 28.27 1.11 65.8 JF20060D48HBL 48 36～54 2.00 96.00 3500 17.40 614.75 35.48 1.40 69.2
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 增压塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 199.8*199.8*59.8 MM
- mountingSize
- 165.0*165.0 MM
- mountingHoleDiameter
- Φ5.8
- Ventilation Opening Size
- φ196.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠铜中管
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 52.8/96.0 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2500/3500 RPM
- airFlow
- 473.42/614.75 CFM
- airPressure
- 0.84/1.40 inch-H₂O
- noiseLevel
- 69.2 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 1055 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
