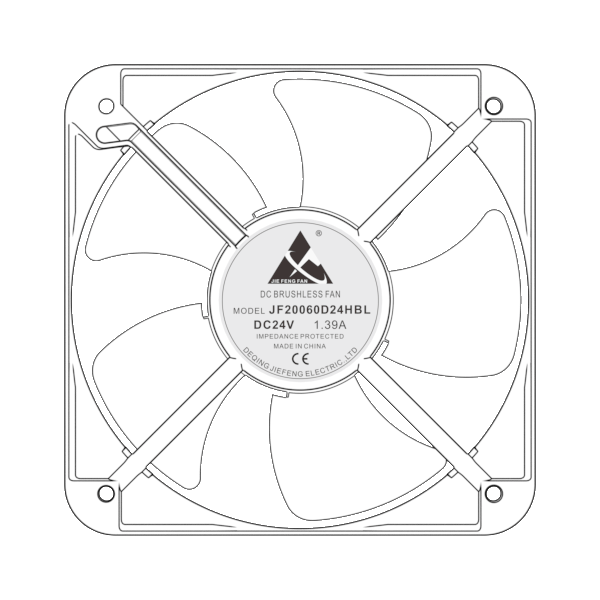

JF20060D24HBL-5
JF20060D24HBL-5 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF20060D12LBL 12 8.5～13.5 1.65 19.80 2000 11.34 400.58 6.65 0.26 54.6 JF20060D12LMBL 12 8.5～13.5 2.92 35.04 2500 14.53 513.39 12.14 0.48 60.0 JF20060D12MBL 12 8.5～13.5 4.73 56.76 3000 16.60 586.69 17.27 0.68 63.6 JF20060D12LHBL 12 8.5～13.5 7.40 88.80 3500 18.27 645.61 22.02 0.87 68.5 JF20060D24LBL 24 18～26.5 0.78 18.82 2000 11.34 400.58 6.65 0.26 54.6 JF20060D24LMBL 24 18～26.5 1.39 33.36 2500 14.53 513.39 12.14 0.48 60.0 JF20060D24MBL 24 18～26.5 2.25 54.00 3000 16.60 586.69 17.27 0.68 63.6 JF20060D24LHBL 24 18～26.5 3.52 84.38 3500 18.27 645.61 22.02 0.87 68.5 JF20060D48LBL 48 36～54 0.37 17.86 2000 11.34 400.58 6.65 0.26 54.6 JF20060D48LMBL 48 36～54 0.66 31.68 2500 14.53 513.39 12.14 0.48 60.0 JF20060D48MBL 48 36～54 1.07 51.36 3000 16.60 586.69 17.27 0.68 63.6 JF20060D48LHBL 48 36～54 1.67 80.16 3500 18.27 645.61 22.02 0.87 68.5
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 金属框
- housingMaterial
- ADC/12
- surfaceTreatment
- 电泳
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5
- overallSize
- 201.5*201.5*61.3 MM
- mountingSize
- 165.0*165.0 MM
- mountingHoleDiameter
- M5.0
- Ventilation Opening Size
- φ197.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 19.80/80.16 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2000/3500 RPM
- airFlow
- 400.58/645.61 CFM
- airPressure
- 0.26/0.87 inch-H₂O
- noiseLevel
- 68.5 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 835 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
