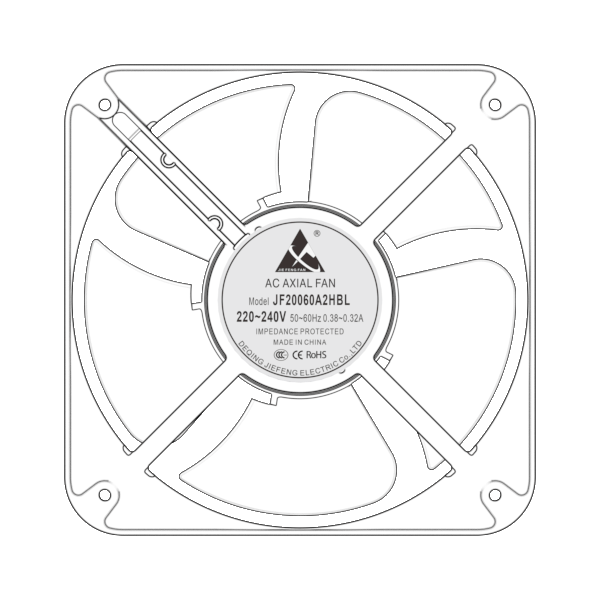

JF20060A2HBL-5
JF20060A2HBL-5 from Jiefeng Electric. AC Axial Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and O…
Product overview
Product dimension drawing： Unit：mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz Style VAC AMP Watt RPM CFM mm H ² O dBA JF20060A1HBL 50/60 Ball 110 0.60/0.58 66.0/63.8 2400/2700 360/382 12/16 62/66 JF20060A2HBL 50/60 Ball 220 0.36/0.34 79.2/74.8 2400/2700 360/382 12/16 62/66 JF20060A3HBL 50/60 Ball 380 0.17/0.16 64.6/60.8 2400/2700 360/382 12/16 62/66
Product specifications
- productType
- 轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通铝框
- housingMaterial
- ADC/12
- surfaceTreatment
- 塑粉喷涂
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5
- overallSize
- 200.5*200.5*61.0 MM
- mountingSize
- 166.0*166.0 MM
- mountingHoleDiameter
- Φ4.3/M5.0
- Ventilation Opening Size
- φ194.0 MM
- motorType
- 罩极电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 60.8/79.2 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2400/2700 RPM
- airFlow
- 360/382 CFM
- airPressure
- 0.47/0.63 inch-H₂O
- noiseLevel
- 62/66 dBA
- protectionGrade
- IP43
- lifeSpan
- 40000 h
- weight
- 1200.0 g
- wiringMethod
- 引线
- safetyCertification
- 3C/CE/ROHS
- customFunction
- 双电压
