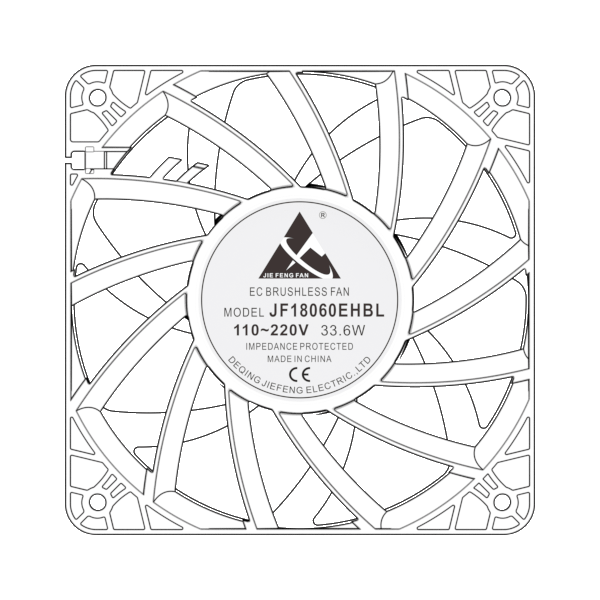

JF18060EHBL-7
JF18060EHBL-7 from Jiefeng Electric. EC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and O…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Power Speed Airflow Pressure Noise PART.NO. VAC/DC VAC/DC Watt RPM M ³ /min CFM mmH2O InH2O dBA JF18060ELBL 110~220 85～260 20.40 1500 5.332 188.40 6.25 0.246 48.70 JF18060EMBL 110~220 85～260 24.00 2000 7.200 254.40 11.38 0.448 55.50 JF18060EHBL 110~220 85～260 33.60 2500 9.138 322.90 18.03 0.710 58.90 JF18060EHHBL 110~220 85～260 48.00 3200 11.804 417.10 29.11 1.146 65.80
Product specifications
- productType
- 轴流风机
- brand
- JIEFENGFAN
- housingType
- 增压塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 180.0*180.0*59.8 MM
- mountingSize
- 154.0*154.0 MM
- mountingHoleDiameter
- Φ5.8
- Ventilation Opening Size
- φ176.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流直流
- ratedVoltage
- 110V/220V
- ratedPower
- 20.4/48.0 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 1500/3200 RPM
- airFlow
- 188.40/417.10 CFM
- airPressure
- 0.245/1.15 inch-H₂O
- noiseLevel
- 65.8 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 870.0 g
- wiringMethod
- 引线
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
