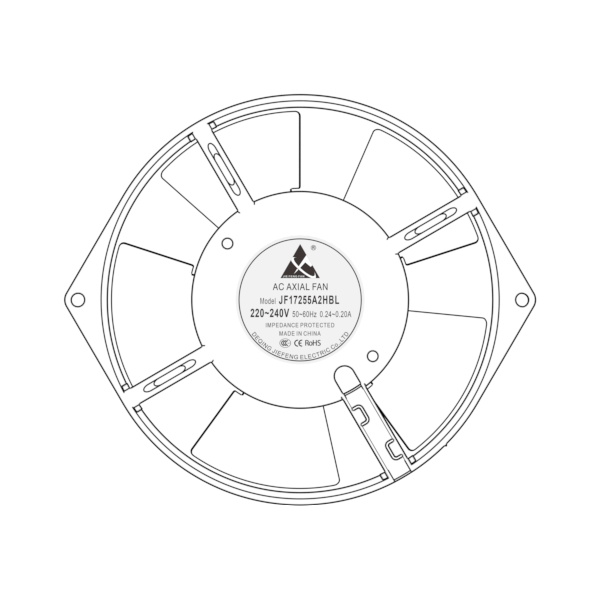

JF17255A2HBL-5
JF17255A2HBL-5 from Jiefeng Electric. AC Axial Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and O…
Product overview
Product dimension drawing： Unit：mm Specification Table: Model Voltage Voltage Freq Current Power Speed Airflow Pressure Noise PART.NO. VAC VAC Hz AMP Watt RPM CFM mm H ² O dBA JF17255A 1HBL 110 100~120 50/60 0.42/0.40 46.2/44.0 2750/3200 175/200 0.43/0.51 53/59 JF17255A 2HBL 220 200~240 50/60 0.22/0.20 48.4/44.0 2750/3200 175/200 0.43/0.51 53/59 JF17255A 3HBL 380 360~400 50/60 0.12/0.11 45.6/41.8 2750/3200 175/200 0.43/0.51 53/59
Product specifications
- productType
- 轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通铝框
- housingMaterial
- ADC/12
- surfaceTreatment
- 电泳
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5
- overallSize
- 174.5*150.0*55.2 MM
- mountingSize
- 162.0 MM
- mountingHoleDiameter
- Φ4.3/M5.0
- Ventilation Opening Size
- φ142.5 MM
- motorType
- 罩极电机
- insulationClass
- B级
- driveType
- 含油/滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 30.4/41.8 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2550/2800 RPM
- airFlow
- 158/192 CFM
- airPressure
- 0.43/0.51 inch-H₂O
- noiseLevel
- 51/59 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 820.0 g
- wiringMethod
- 引线
- safetyCertification
- 3C/CE/ROHS
- customFunction
- 双电压
