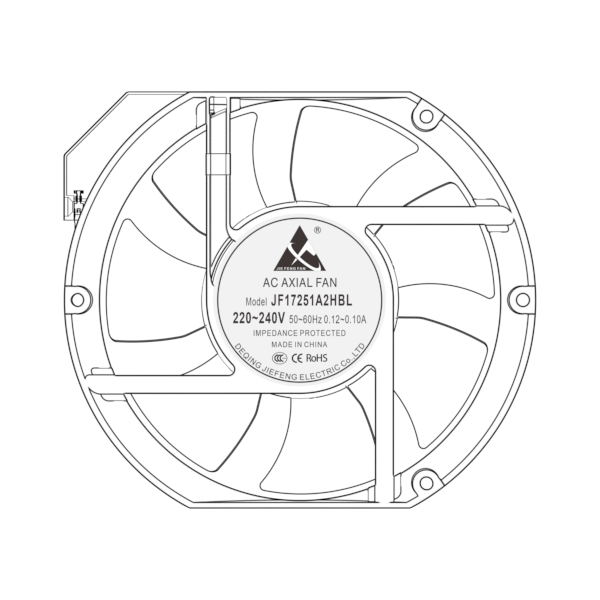

JF17251A2HBL-7M
JF17251A2HBL-7M from Jiefeng Electric. AC Axial Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Uniit: mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz Style VAC AMP Watt RPM CFM mm H ² O dBA JF17251A1HSL 50/60 Sleeve 110 0.42/0.40 46.2/44.0 2700/3150 173/198 11/13 52/62 JF17251A1HBL 50/60 Ball 110 0.42/0.40 46.2/44.0 2750/3200 175/200 11/13 53/59 JF17251A2HSL 50/60 Sleeve 220 0.22/0.20 48.4/44.0 2700/3150 173/198 11/13 52/62 JF17251A2HBL 50/60 Ball 220 0.22/0.20 48.4/44.0 2750/3200 175/200 11/13 53/59 JF17251A3HSL 50/60 Sleeve 380 0.12/0.11 45.6/41.8 2700/3150 173/198 11/13 52/62 JF17251A3HBL 50/60 Ball 380 0.12/0.11 45.6/41.8 2750/3200 175/200 11/13 53/59
Product specifications
- productType
- 轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通铝框
- housingMaterial
- ADC/12
- surfaceTreatment
- 电泳
- bladeMaterial
- 金属 Q235
- bladeCount
- 7
- overallSize
- 171.5*150.5*51.0 MM
- mountingSize
- 162.0 MM
- mountingHoleDiameter
- Φ4.3/M5.0
- Ventilation Opening Size
- φ146.0 MM
- motorType
- 外转子风机
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 22.8/26.4 W
- workingTemperature
- -30℃~+80℃
- workingHumidity
- 30%~70%RH
- speed
- 22.8/26.6 RPM
- airFlow
- 195/230 CFM
- airPressure
- 0.51/0.59 inch-H₂O
- noiseLevel
- 56/63 dBA
- protectionGrade
- IP43
- lifeSpan
- 40000 h
- weight
- 900.0g
- wiringMethod
- 引线
- safetyCertification
- 3C/CE/ROHS
