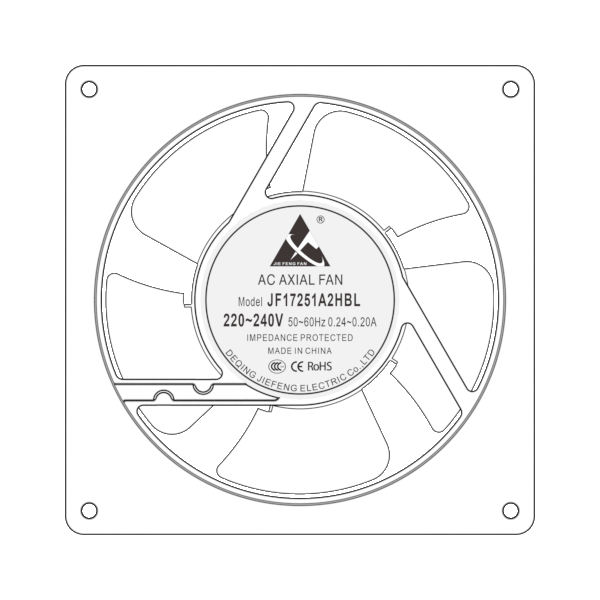

JF17251A2HBL-5（square-round）
JF17251A2HBL-5（square-round） from Jiefeng Electric. AC Axial Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applicati…
Product overview
Product dimension drawing： Unit：mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz Style VAC AMP Watt RPM CFM mm H ² O dBA JF17251A1HSL 50/60 Sleeve 110 0.42/0.40 46.2/44.0 2700/3150 173/198 11/13 52/62 JF17251A1HBL 50/60 Ball 110 0.42/0.40 46.2/44.0 2750/3200 175/200 11/13 53/59 JF17251A2HSL 50/60 Sleeve 220 0.22/0.20 48.4/44.0 2700/3150 173/198 11/13 52/62 JF17251A2HBL 50/60 Ball 220 0.22/0.20 48.4/44.0 2750/3200 175/200 11/13 53/59 JF17251A3HSL 50/60 Sleeve 380 0.12/0.11 45.6/41.8 2700/3150 173/198 11/13 52/62 JF17251A3HBL 50/60 Ball 380 0.12/0.11 45.6/41.8 2750/3200 175/200 11/13 53/59
Product specifications
- productType
- 轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通铝框
- housingMaterial
- ADC/12
- surfaceTreatment
- 塑粉喷涂
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5/7
- overallSize
- 172.5*172.5*50.0 MM
- mountingSize
- 155.0*155.0 MM
- mountingHoleDiameter
- Φ4.3/M5.0
- Ventilation Opening Size
- φ146.0 MM
- motorType
- 罩极电机
- insulationClass
- B级
- driveType
- 含油/滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 41.8/48.4 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2700/3200 RPM
- airFlow
- 173/200 CFM
- airPressure
- 0.43/0.51 inch-H₂O
- noiseLevel
- 52/62 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 900.0 g
- wiringMethod
- 引线
- safetyCertification
- 3C/CE/ROHS
- customFunction
- 双电压
