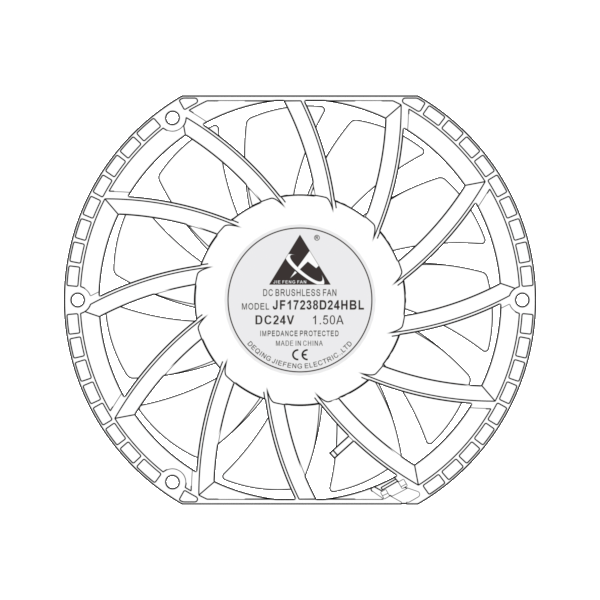

JF17238D24HBL-11
JF17238D24HBL-11 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF17238D12LBL 12 8.5～13.5 1.40 16.80 2000 5.06 178.63 8.28 0.33 46.0 JF17238D12MBL 12 8.5～13.5 2.50 30.00 3000 7.32 258.70 17.25 0.68 55.0 JF17238D12HBL 12 8.5～13.5 3.20 38.40 3600 9.35 330.50 24.99 0.98 64.0 JF17238D24LBL 24 18～26.5 0.70 16.80 2000 5.06 178.63 8.28 0.33 46.0 JF17238D24MBL 24 18～26.5 1.25 30.00 3000 7.32 258.70 17.25 0.68 55.0 JF17238D24HBL 24 18～26.5 1.60 38.40 3600 9.35 330.50 24.99 0.98 64.0 JF17238D48LBL 48 36～54 0.35 16.80 2000 5.06 178.63 8.28 0.33 46.0 JF17238D48MBL 48 36～54 0.63 30.00 3000 7.32 258.70 17.25 0.68 55.0 JF17238D48HBL 48 36～54 0.80 38.40 3600 9.35 330.50 24.99 0.98 64.0
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 增压塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 11
- overallSize
- 172.3*149.5*37.7 MM
- mountingSize
- 162.0*162.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ146.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠铜中管
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 16.8/38.4 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2000/3600 RPM
- airFlow
- 178.63/330.5 CFM
- airPressure
- 0.33/0.98 mmH₂O
- noiseLevel
- 64.0 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 500.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
