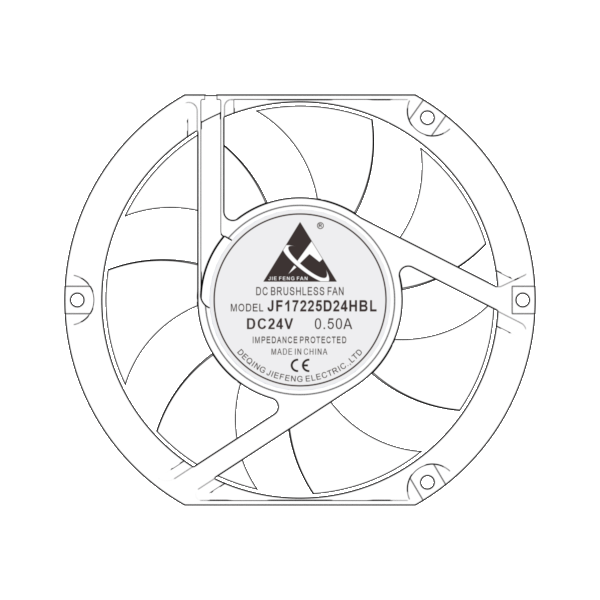

JF17225D24HBL-7M
JF17225D24HBL-7M from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF17225D12LBL 12 8.5～13.5 0.98 11.76 3000 5.73 202.54 11.86 0.47 52.0 JF17225D12MBL 12 8.5～13.5 1.17 14.04 3200 6.08 214.85 13.31 0.52 53.5 JF17225D12HBL 12 8.5～13.5 3.00 36.00 4300 8.23 290.64 20.85 0.82 61.5 JF17225D24LBL 24 18～26.5 0.50 12.00 3000 5.73 202.54 11.86 0.47 52.0 JF17225D24MBL 24 18～26.5 0.62 14.88 3200 6.08 214.85 13.31 0.52 53.5 JF17225D24HBL 24 18～26.5 1.60 38.40 4300 8.23 290.64 20.85 0.82 61.5 JF17225D48LBL 48 36～54 0.27 12.96 3000 5.73 202.54 11.86 0.47 52.0 JF17225D48MBL 48 36～54 0.31 14.88 3200 6.08 214.85 13.31 0.52 53.5 JF17225D48HBL 48 36～54 0.80 38.40 4300 8.23 290.64 20.85 0.82 61.5
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 金属框
- housingMaterial
- ADC/12
- surfaceTreatment
- 电泳
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 170.5*149.8*25.7 MM
- mountingSize
- 162.0*162.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ144.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 11.76/38.4 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 3000/4300 RPM
- airFlow
- 202.54/290.64 CFM
- airPressure
- 0.47/0.82 mmH₂O
- noiseLevel
- 61.5 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 430.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
