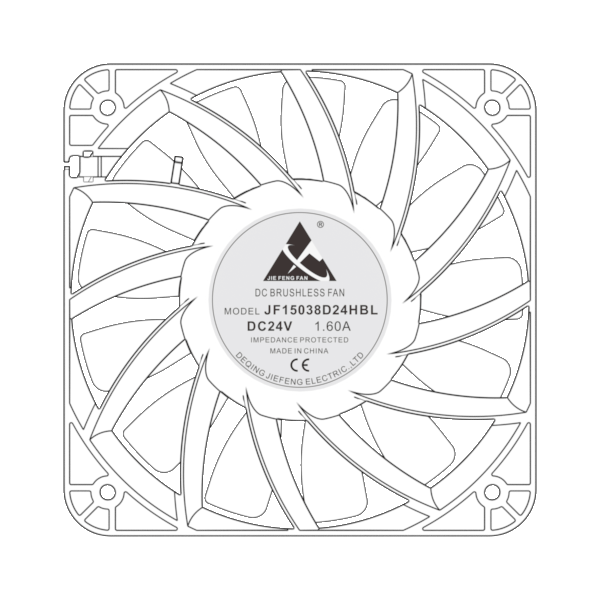

JF15038D24HBL-13
JF15038D24HBL-13 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF15038D12LBL 12 8.5～13.5 1.80 21.60 2500 6.64 234.60 15.29 0.60 55.0 JF15038D12MBL 12 8.5～13.5 2.40 28.80 3000 7.97 281.70 22.12 0.87 60.0 JF15038D12HBL 12 8.5～13.5 3.20 38.40 3500 9.36 330.71 28.93 1.14 64.0 JF15038D24LBL 24 18～26.5 0.90 21.60 2500 6.64 234.60 15.29 0.60 55.0 JF15038D24MBL 24 18～26.5 1.20 28.80 3000 7.97 281.70 22.12 0.87 60.0 JF15038D24HBL 24 18～26.5 1.60 38.40 3500 9.36 330.71 28.93 1.14 64.0 JF15038D48LBL 48 36～54 0.45 21.60 2500 6.64 234.60 15.29 0.60 55.0 JF15038D48MBL 48 36～54 0.60 28.80 3000 7.97 281.70 22.12 0.87 60.0 JF15038D48HBL 48 36～54 0.80 38.40 3500 9.36 330.71 28.93 1.14 64.0
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 增压塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 13
- overallSize
- 150.0*150.0*38.5 MM
- mountingSize
- 122.0*122.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ146.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠铜中管
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 21.6/38.4 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2500/3500 RPM
- airFlow
- 234.60/330.71 CFM
- airPressure
- 0.60/1.14 mmH₂O
- noiseLevel
- 64.0 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 520.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
