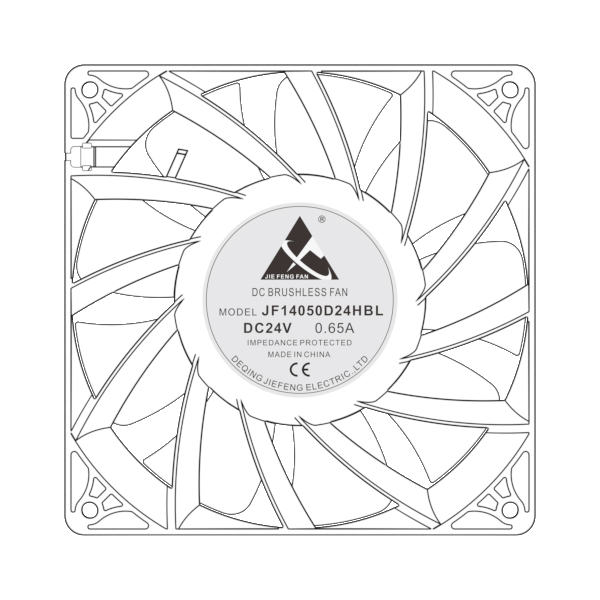

JF14050D24HBL-9
JF14050D24HBL-9 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and…
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF14050D12LBL 12 8.5～13.5 2.12 25.44 2800 6.49 229.40 13.26 0.52 59.4 JF14050D12MBL 12 8.5～13.5 2.60 31.20 3200 6.80 240.36 19.58 0.77 62.5 JF14050D12HBL 12 8.5～13.5 2.85 34.20 3600 8.59 303.70 21.82 0.86 64.7 JF14050D24LBL 24 18～26.5 0.83 20.00 2800 6.49 229.40 13.26 0.52 59.4 JF14050D24MBL 24 18～26.5 1.10 26.40 3200 6.80 240.36 19.58 0.77 62.5 JF14050D24HBL 24 18～26.5 1.50 36.00 3600 8.59 303.70 21.82 0.86 64.7 JF14050D48LBL 48 36～54 0.53 25.44 2800 6.49 229.40 13.26 0.52 59.4 JF14050D48MBL 48 36～54 0.67 32.00 3200 6.80 240.36 19.58 0.77 62.5 JF14050D48HBL 48 36～54 0.73 35.04 3600 8.59 303.70 21.82 0.86 64.7
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 增压塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 9
- overallSize
- 140.0*140.0*50.5 MM
- mountingSize
- 124.0*124.0 MM
- mountingHoleDiameter
- Φ4.9
- Ventilation Opening Size
- φ136.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠铜中管
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 25.44/35.04 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2800/3600 RPM
- airFlow
- 229.40/303.70 CFM
- airPressure
- 0.52/0.86 mmH₂O
- noiseLevel
- 64.7 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 580.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
