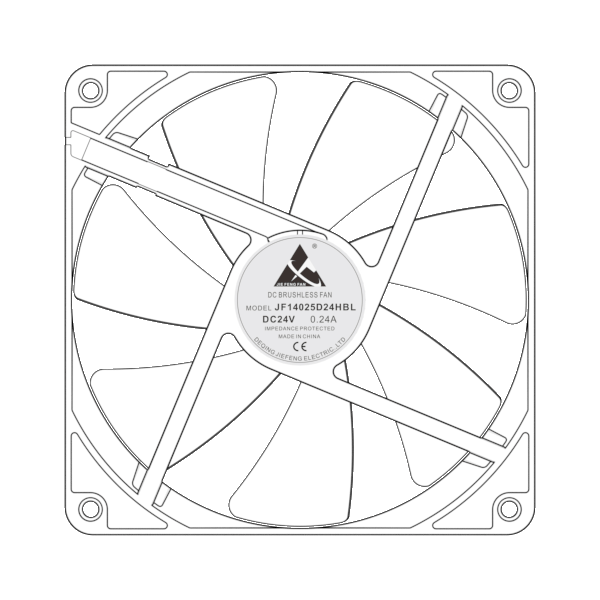

JF14025D24HBL-7
JF14025D24HBL-7 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and…
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF14025D12LBL 12 8.5～13.5 0.10 1.20 1500 1.76 62.07 1.30 0.05 28.0 JF14025D12LMBL 12 8.5～13.5 0.23 2.76 2000 2.50 88.28 2.54 0.10 36.0 JF14025D12MBL 12 8.5～13.5 0.47 5.64 2500 3.19 112.80 3.86 0.15 43.1 JF14025D12LHBL 12 8.5～13.5 1.00 12.00 2900 3.78 133.43 5.36 0.21 47.1 JF14025D24LBL 24 18～26.5 0.05 1.20 1500 1.76 62.07 1.30 0.05 28.0 JF14025D24LMBL 24 18～26.5 0.12 2.88 2000 2.50 88.28 2.54 0.10 36.0 JF14025D24MBL 24 18～26.5 0.24 5.76 2500 3.19 112.80 3.86 0.15 43.1 JF14025D24LHBL 24 18～26.5 0.50 12.00 2900 3.78 133.43 5.36 0.21 47.1 JF14025D48LBL 48 36～54 0.03 1.44 1500 1.76 62.07 1.30 0.05 28.0 JF14025D48LMBL 48 36～54 0.06 2.88 2000 2.50 88.28 2.54 0.10 36.0 JF14025D48MBL 48 36～54 0.12 5.76 2500 3.19 112.80 3.86 0.15 43.1 JF14025D48LHBL 48 36～54 0.25 12.00 2900 3.78 133.43 5.36 0.21 47.1
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 140.5*140.5*25.1 MM
- mountingSize
- 124.0*124.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ136.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 含油/滚珠
- powerType
- 直流
- ratedVoltage
- 5V/12V/24V/48V
- ratedPower
- 1.2/12.0 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 1500/2900 RPM
- airFlow
- 62.07/133.43 CFM
- airPressure
- 0.05/0.21 mmH₂O
- noiseLevel
- 47.1 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 170.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
