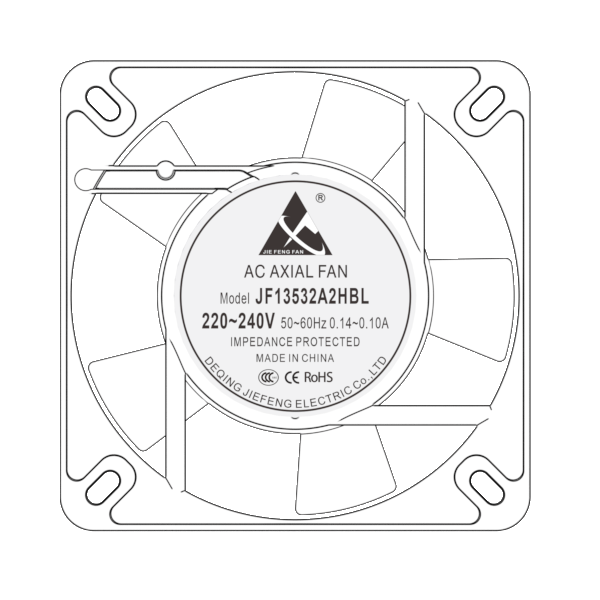

JF13532A2HBL-5
JF13532A2HBL-5 from Jiefeng Electric. AC Axial Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and O…
Product overview
Product dimension drawing： Unit：mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz Style VAC AMP Watt RPM CFM mm H ² O dBA JF13532A1HSL 50/60 Sleeve 110 0.21/0.19 23.1/20.9 2350/2650 119/134 6.6/7.3 43/53 JF13532A1HBL 50/60 Ball 110 0.21/0.19 23.1/20.9 2400/2700 120/135 6.8/7.5 44/50 JF13532A2HSL 50/60 Sleeve 220 0.11/0.09 24.2/19.8 2350/2650 119/134 6.6/7.3 43/53 JF13532A2HBL 50/60 Ball 220 0.11/0.09 24.2/19.8 2400/2700 120/135 6.8/7.5 44/50 JF13532A3HSL 50/60 Sleeve 380 0.06/0.05 22.8/19.0 2350/2650 119/134 6.6/7.3 43/53 JF13532A3HBL 50/60 Ball 380 0.06/0.05 22.8/19.0 2400/2700 120/135 6.8/7.5 44/50
Product specifications
- productType
- 轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通铝框
- housingMaterial
- ADC/12
- surfaceTreatment
- 塑粉喷涂
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5
- overallSize
- 136.0*136.0*33.3 MM
- mountingSize
- 113.0*113.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ129.5 MM
- motorType
- 罩极电机
- insulationClass
- B级
- driveType
- 含油/滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 19.0/24.2 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2350/2700 RPM
- airFlow
- 119/135 CFM
- airPressure
- 0.26/0.30 inch-H₂O
- noiseLevel
- 43/53 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 526.0 g
- wiringMethod
- 引线
- safetyCertification
- 3C/CE/ROHS
- customFunction
- 双电压
Related products
JF8025A2HBL/T-7
Product dimension drawing： Unit: mm Mounting Hole Dimension Drawing： Unit: mm Specification Table: Model Freq Bearing Voltage Current Power…
JF8038A2HBL/T-5
Product dimension drawing： Unit: mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz …
JF9225A2HBL/T-5
Product dimension drawing： Unit: mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz …

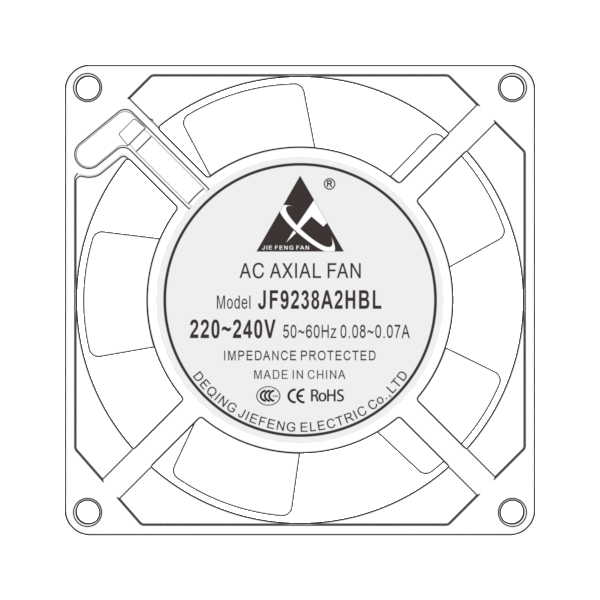

JF9238A2HBL/T-5
Product dimension drawing： Unit: mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz …

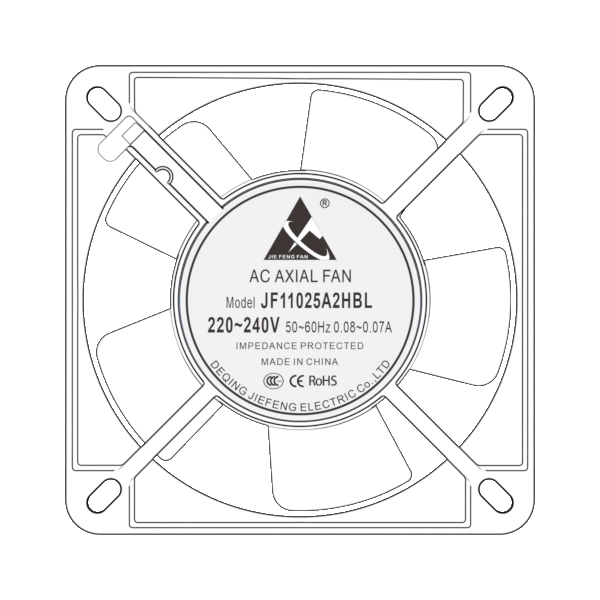

JF11025A2HBL/T-5
Product dimension drawing： Unit: mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz …

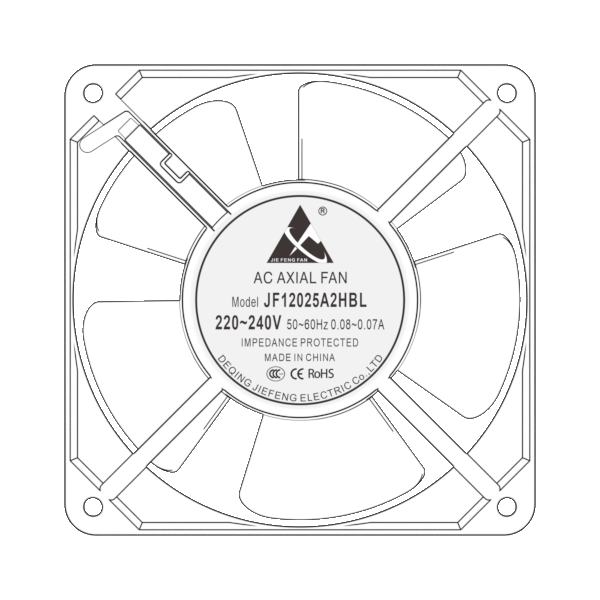

JF12025A2HBL/T-5
