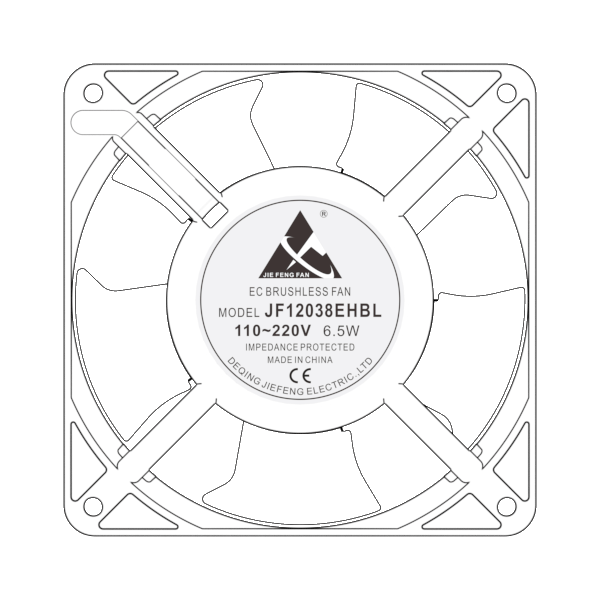

JF12038EHBL-5
JF12038EHBL-5 from Jiefeng Electric. EC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and O…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Power Speed Airflow Pressure Noise PART.NO. VAC/DC VAC/DC Watt RPM M ³ /min CFM mmH2O InH2O dBA JF12038ELBL 110~220 85～260 2.30 1500 1.581 55.86 0.76 0.03 30.60 JF12038EMBL 110~220 85～260 3.00 2000 2.047 72.34 3.05 0.12 35.70 JF12038ELBL 110~220 85～260 4.20 2500 2.517 88.95 5.59 0.22 40.20 JF12038EMBL 110~220 85～260 6.50 3000 2.880 101.76 7.87 0.31 44.90
Product specifications
- productType
- 轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5
- overallSize
- 120.2*120.2*38.5 MM
- mountingSize
- 105.0*105.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ116.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 含油/滚珠
- powerType
- 交流直流
- ratedVoltage
- 110V/220V
- ratedPower
- 2.3/6.5 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 1500/3000 RPM
- airFlow
- 55.86/101.76 CFM
- airPressure
- 0.03/0.31 inch-H₂O
- noiseLevel
- 44.9 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 230.0 g
- wiringMethod
- 引线
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
